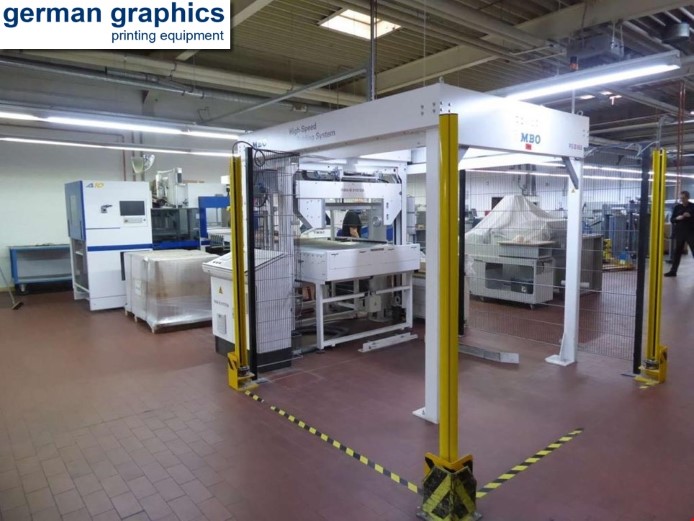

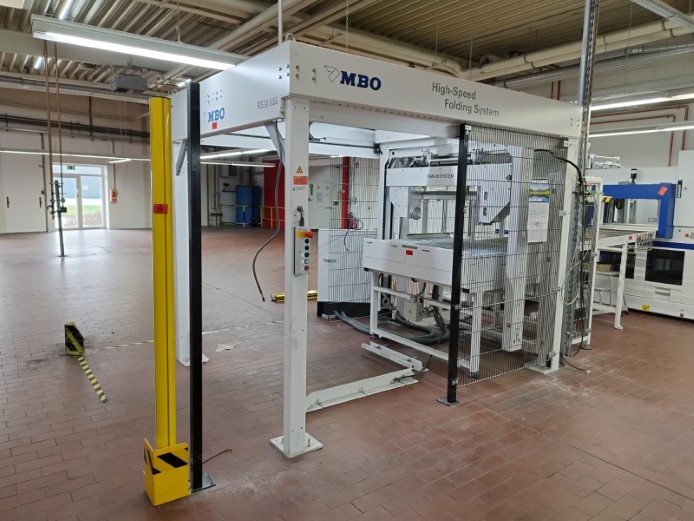

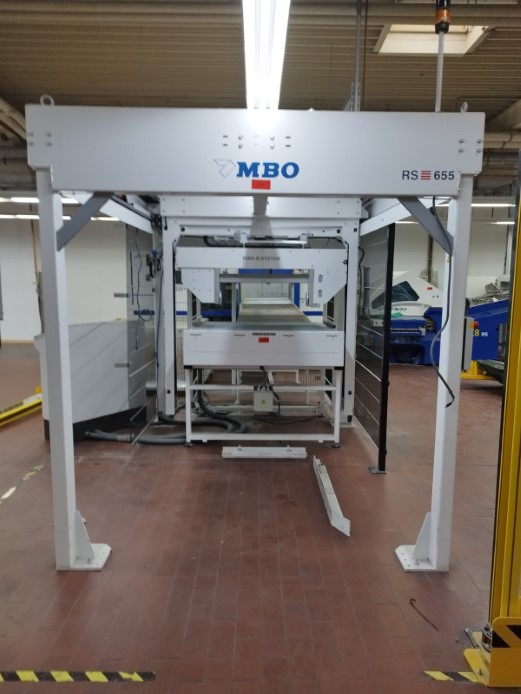

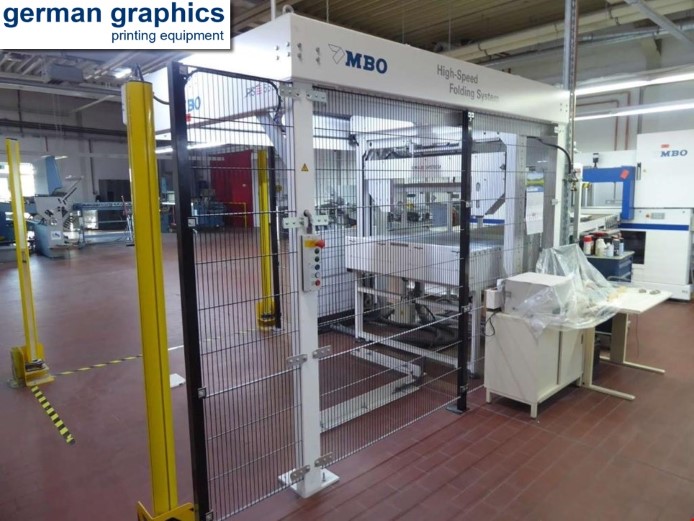

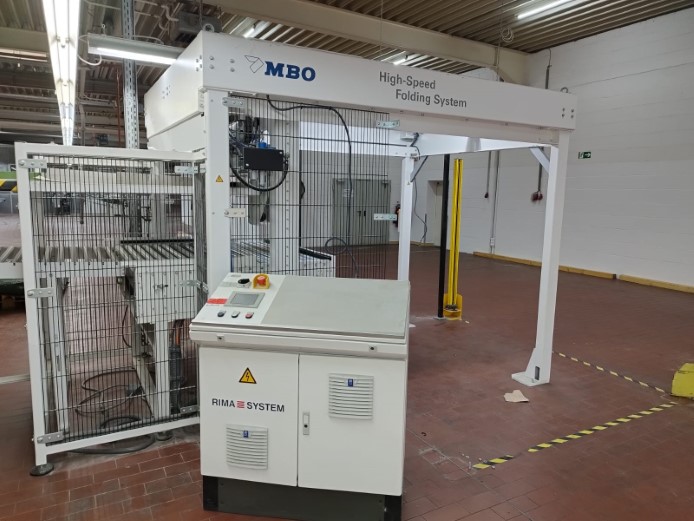

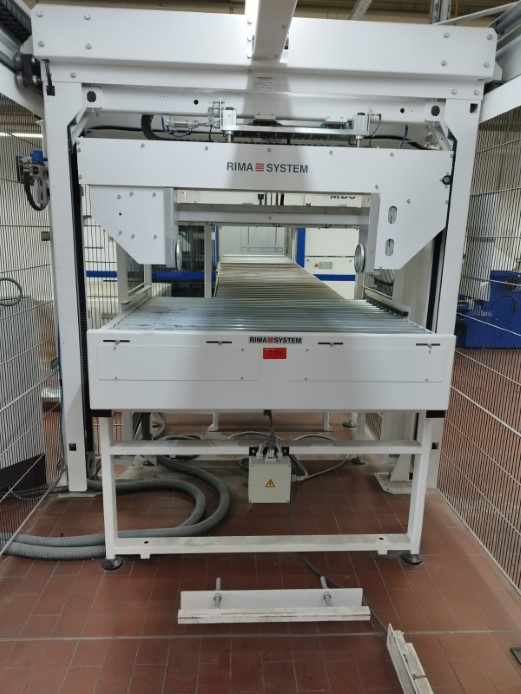

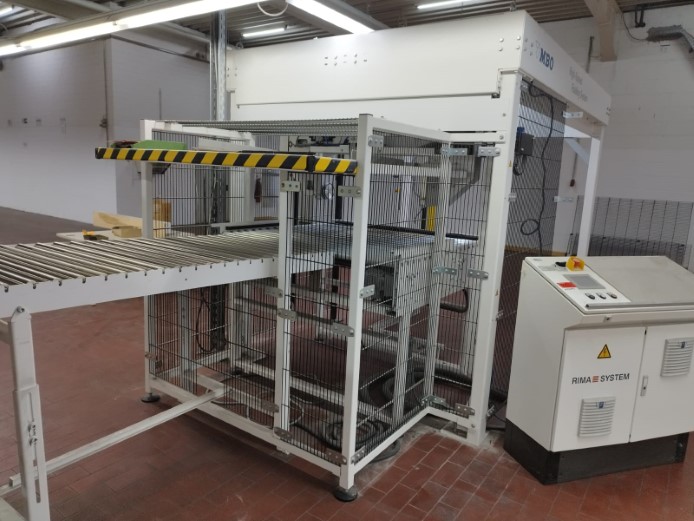

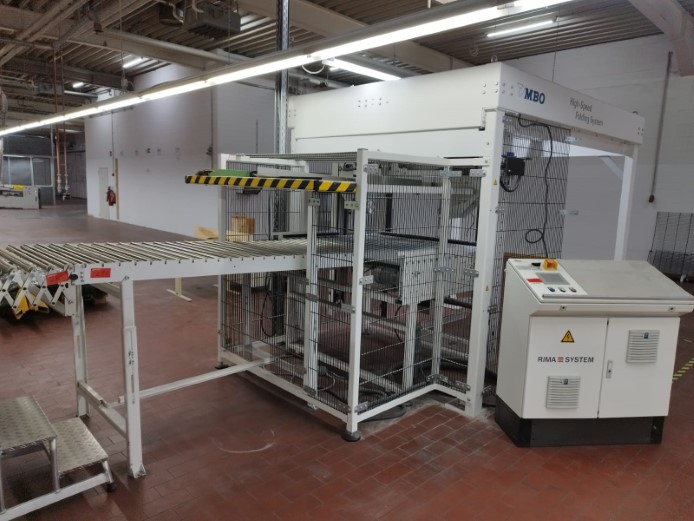

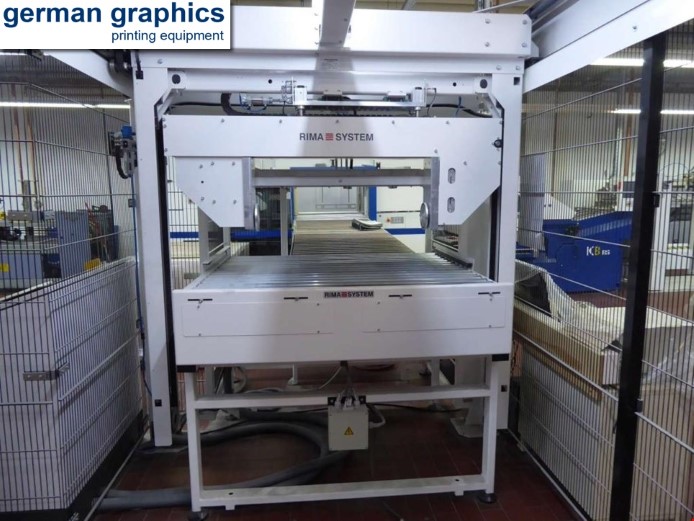

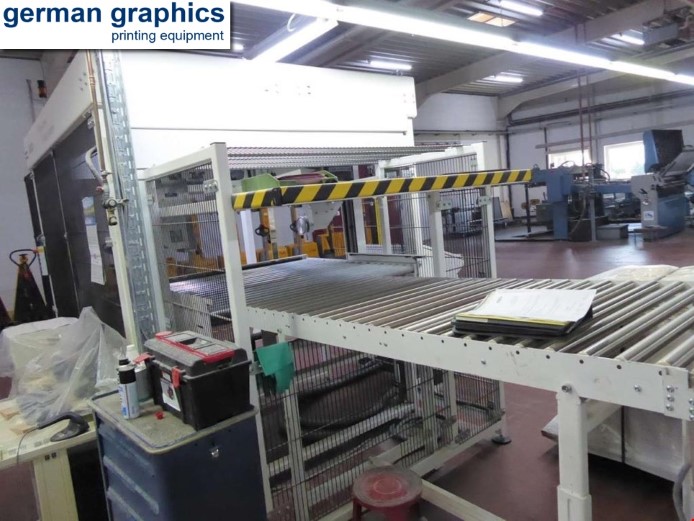

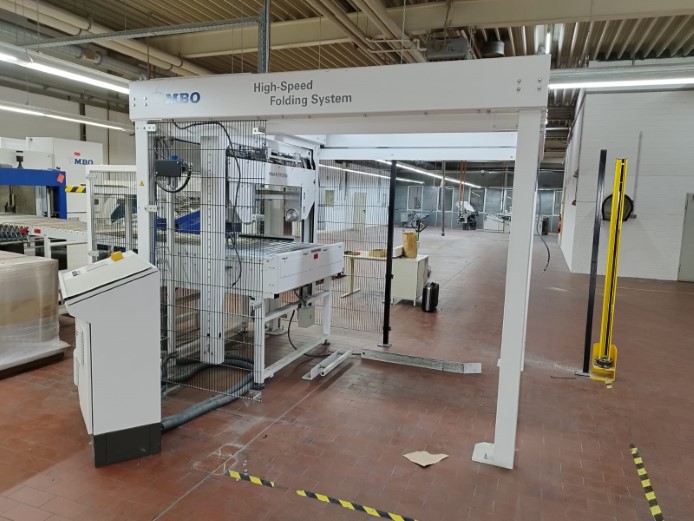

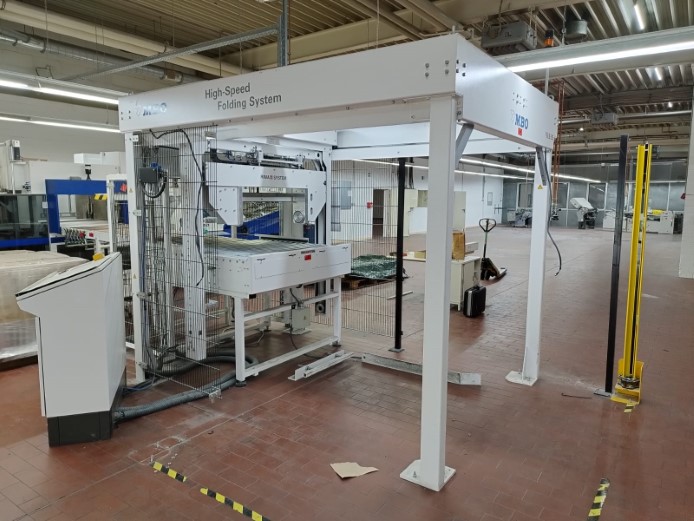

Rima Logstacker 610Rima Palletizer 655 Year                                             2015 / 2016Product Formats                                                    Head: 100 - 320 mm                                                    Spine: 180 - 500 mmProduct Thickness                                                    4 Pages @ 57 g/m² to 128 Pages @ 57 g/m²Compressed Log Length                                                    Standard: 800 - 1,200 mm                                                    High-Speed (HS): 1,000 - 1,200 mmHeights                                                    Infeed Height: 600 - 800 mm                                                    Delivery Height: 900 mmProduct Orientation                                                    Spine LeadingSpeed                                                    Standard Cycle Time: Approx. 27 sec                                                    High-Speed Cycle Time: Approx. 25 sec                                                     Cycle time depends on product type and log length.Input power                                                    400 V, 3~, N, PE                                                    50/60 Hz                                                    40 A                                                    15 kW (Log Palletizer) + 3 kWAir Requirements                                                    110 l/min @ 6 bar (87 psi)EquipamentStraight  infeed delivery to left automatic board despencerautomatic strapping unit                                                Automatic Pallatizer 655

Technical Data·       Fully automatic perfect binding machine.·       Suitable for books, catalogs, magazines and softcover production.·       Modular design for integration with gathering, binding and trimming systems.·       High-production industrial binding system.·       EVA hotmelt adhesive application system.·       Automatic cover feeder.·       Automatic book block feeding.·       Milling and spine preparation station.·       Cover creasing and scoring unit.·       Delivery conveyor system.·       PLC-controlled operation with central control panel.Production Capabilities·       Production speed: up to 6,000 cycles/hour depending on configuration.·       Book block thickness range: approximately 2 to 60 mm.·       Maximum book format: approximately 320 x 450 mm.·       Minimum book format: approximately 100 x 105 mm.·       Suitable for short, medium and long production runs.Features·       Automatic thickness adjustment.·       Electronic production monitoring.·       Fast make-ready times.·       Precise spine preparation.·       Consistent adhesive application.·       Robust industrial construction.·       High reliability and low maintenance requirements. ·       Designed for continuous 24-hour production environments.

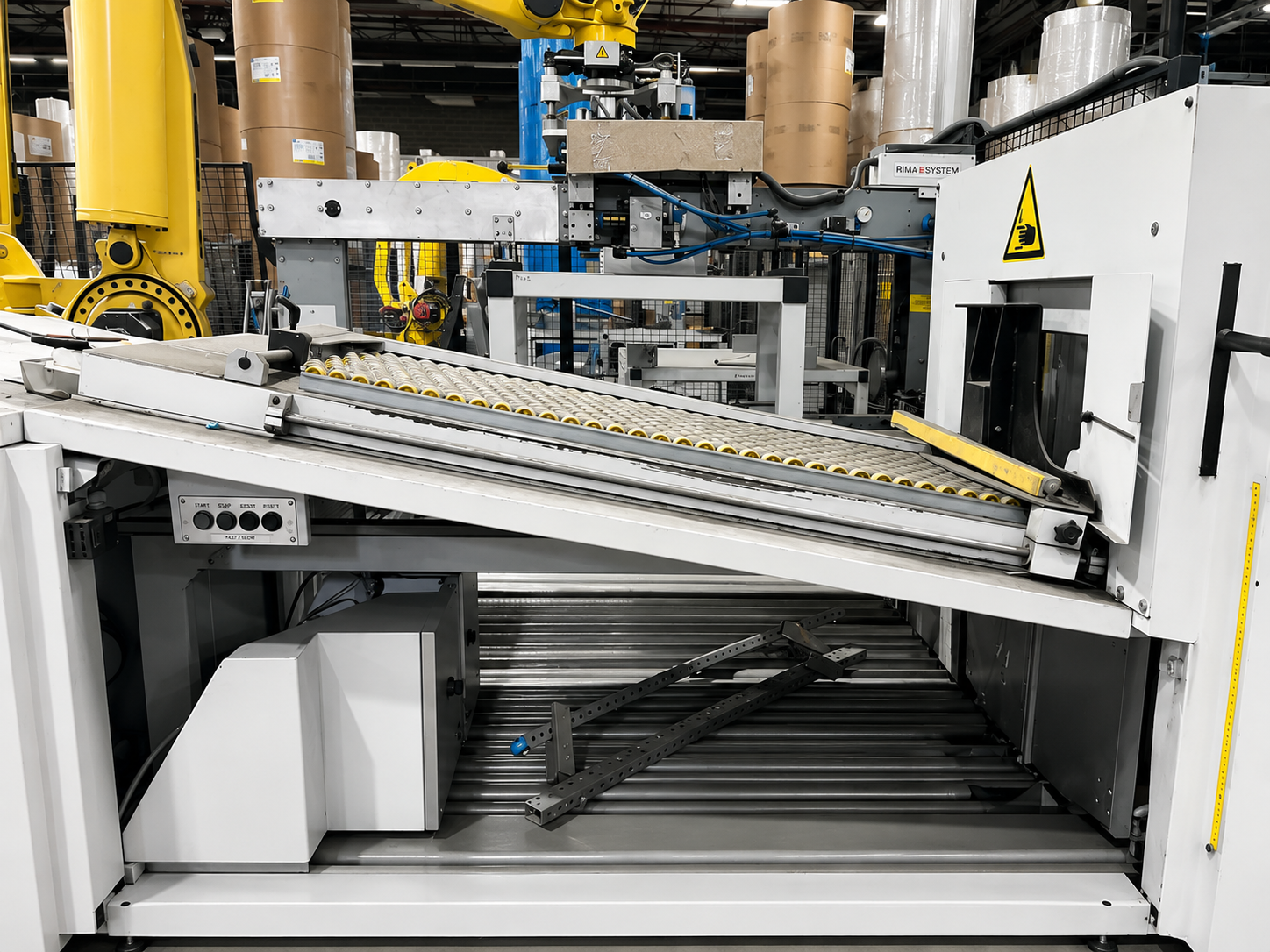

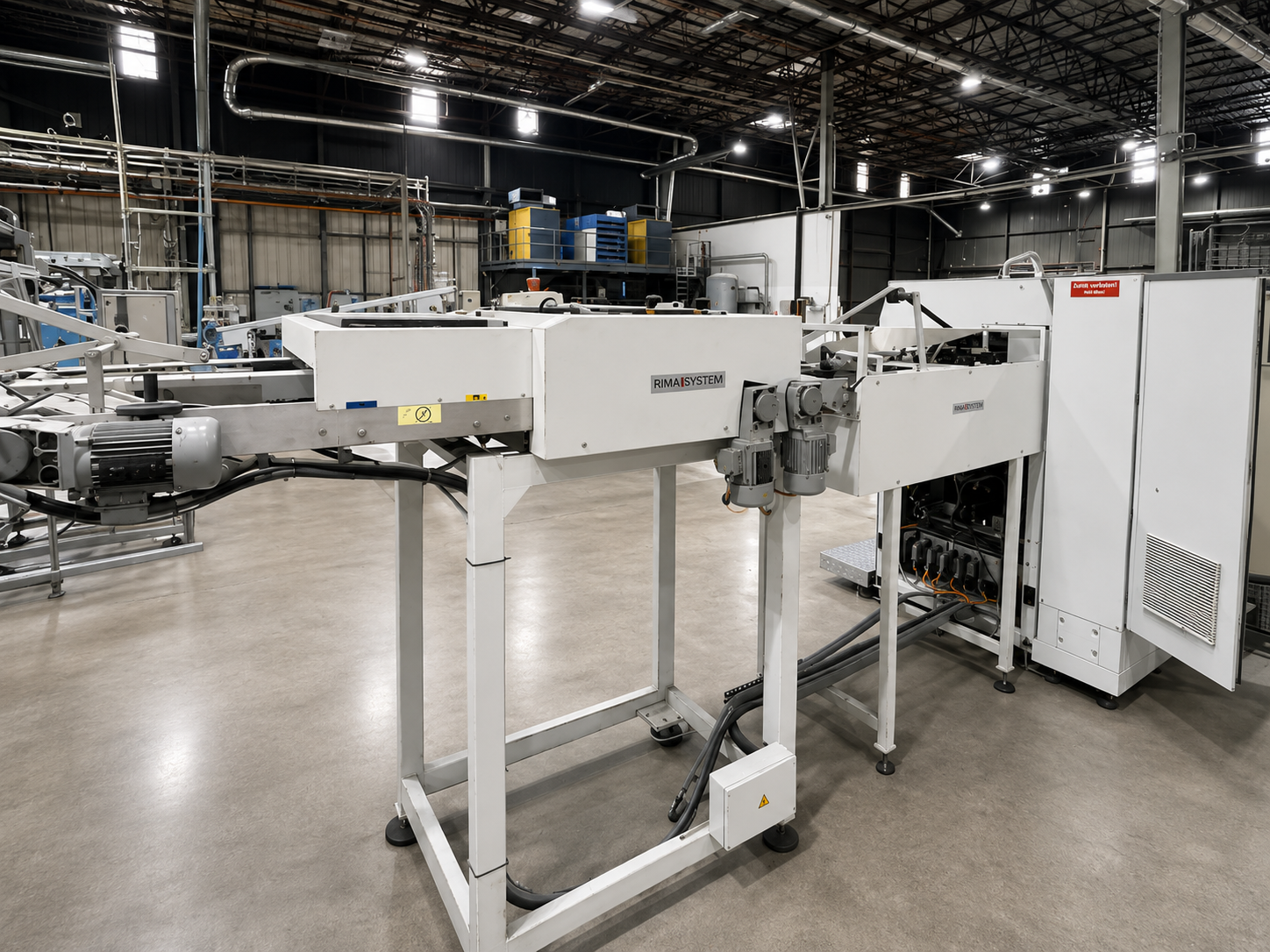

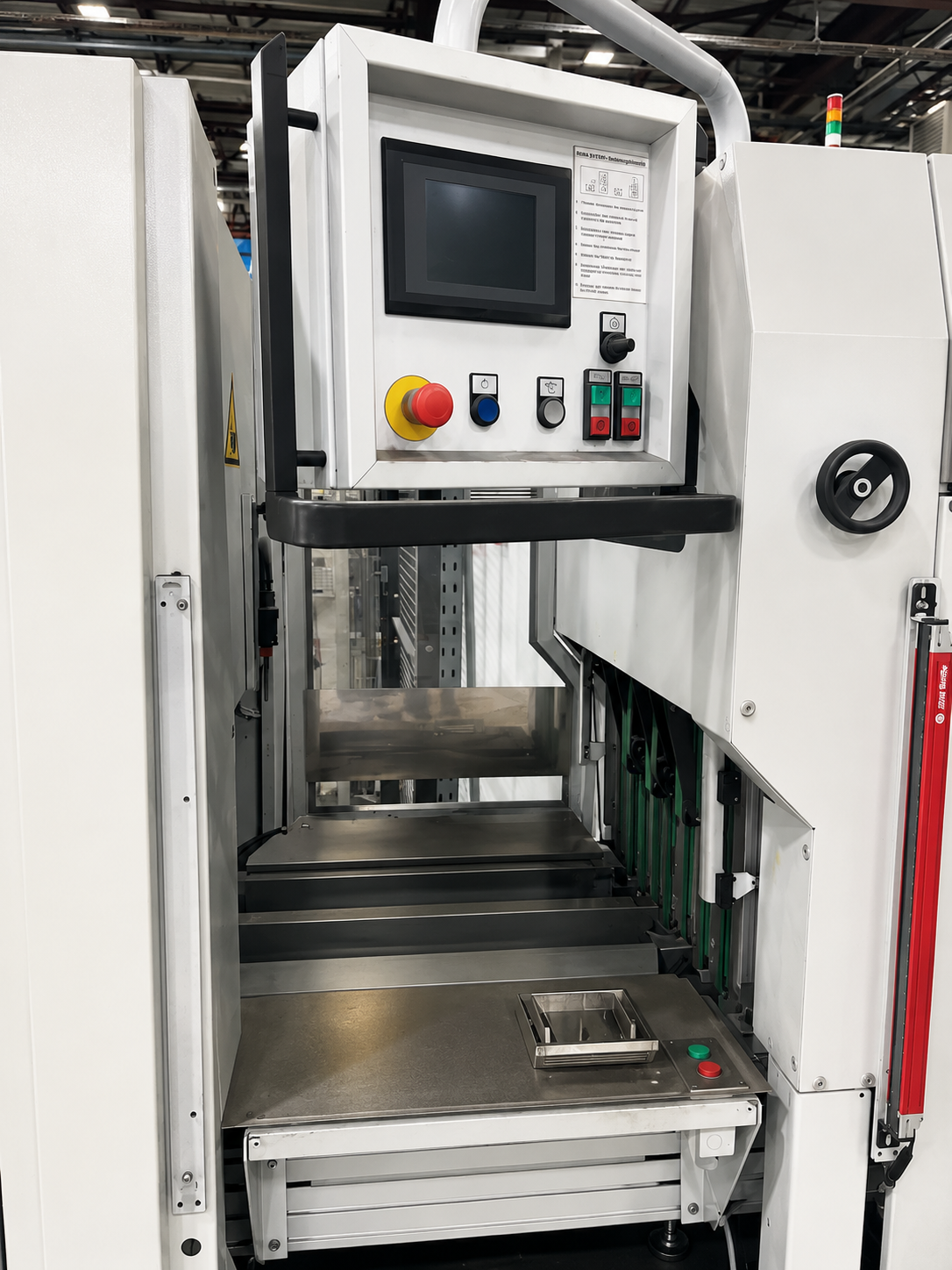

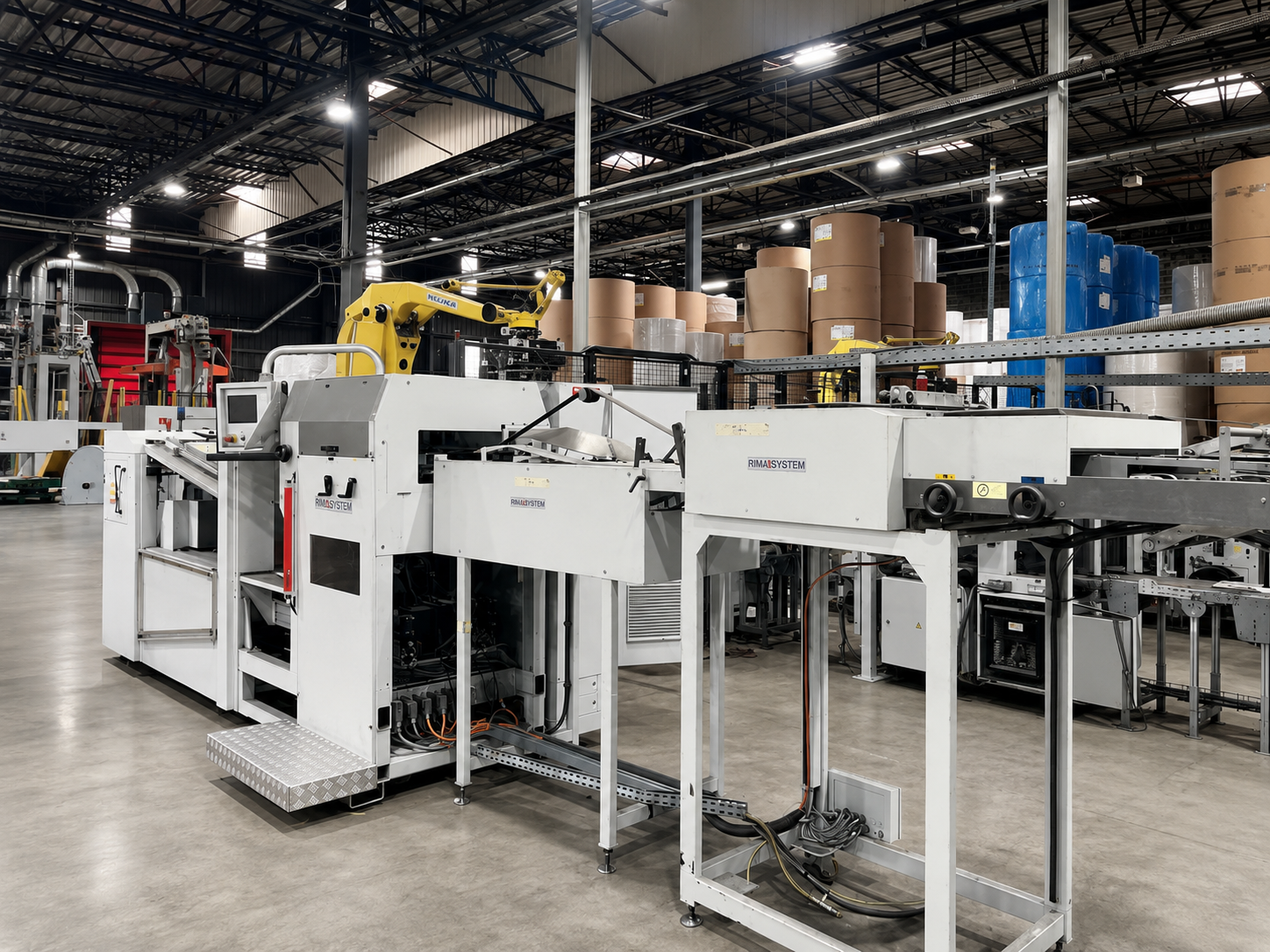

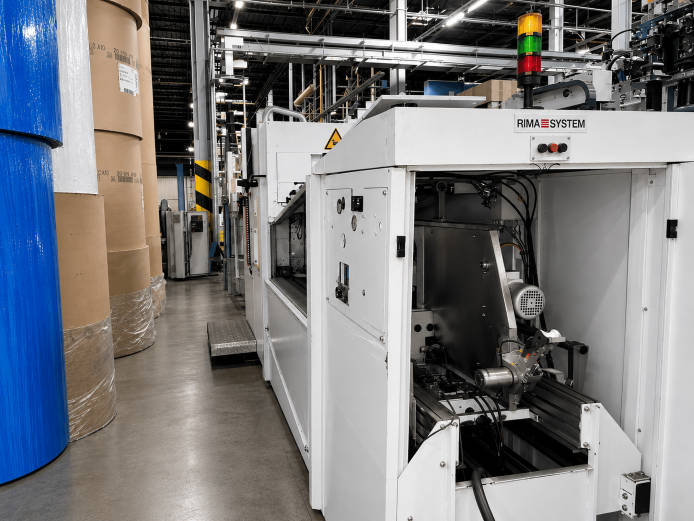

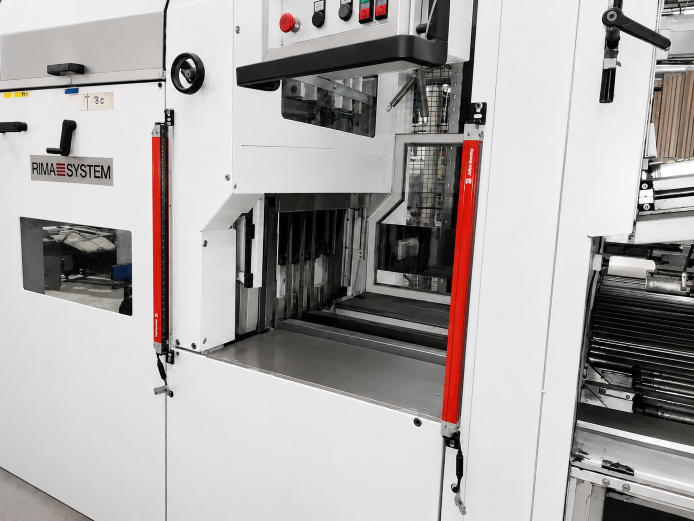

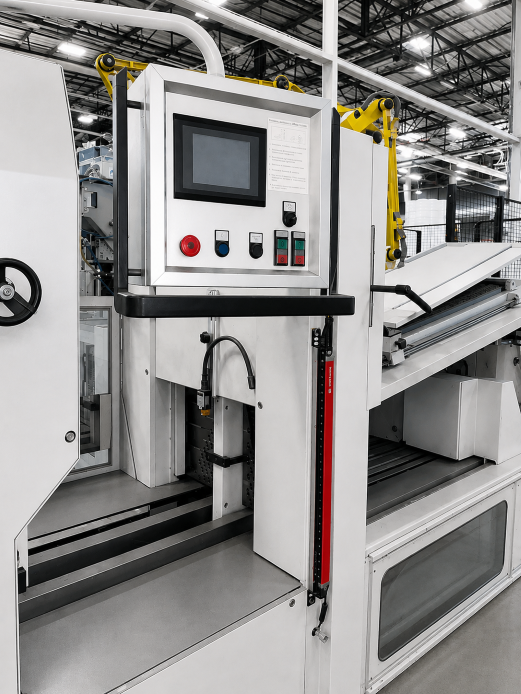

Built in                          2007Rima RS 600Description·         Straight infeed·         Infeed belt·         Reject unit·         Pressing station·         Turnover belt·         Delivery to rightTechnical DataProduct Format·         Dimension A: min. 100 mm / max. 340 mm·         Dimension B: min. 180 mm / max. 500 mm·         Dimension D: limited by dimensions A & BProduct Thickness·         Min.: 4 pages at 57 g/m²·         Max.: 132 pages at 57 g/m²Compressed Log Length·         Min.: 800 mm·         Max.: 1,200 mmInfeed Height·         Adjustable from 600 to 800 mmDelivery Table Height·         900 mm (left or right)Log Spacing at Infeed·         Min.: 40 mm·         Max.: 80 mm Product Orientation·         Spine leadingSpeed·         Up to 120,000 copies/hour·         Cycle time: 25 seconds (depending on product)Electrical Requirements·         400 V, 3~, N, PE, 50/60 Hz·         40 A·         Connected load: 28 kWAir Requirement·         110 l/min at 6 barWeight·         Approx. 3,500 kgOptions·         Left or right infeed·         Left or right delivery tableRima RS 650·         Automatic compensating stacker for printed products.·         Designed for magazines, newspapers, catalogs and bookbinding products.·         Continuous high-speed stacking operation.·         Servo-controlled stacking technology.·         Gentle product handling for stable stack formation.·         Low maintenance and high reliability.·         Suitable for operation behind bindery equipment, inserters and packaging systems.

Log StackerYear                         2008Description-straight infeed-infeed belt-reject unit-pressing station-turnoverbelt-delivery to right

Log StackerYear                         2008Description-straight infeed-infeed belt-reject unit-pressing station-turnoverbelt -delivery to right

Built in:                                 2001 Size:              max                480 x 320 mm                      min                 200 x 110 mm Mech. Speed:                      1,0 m/s  Air requirement (6 bar):      5 m³/h Weight:                                4.100 kg (approx.)Equipment                                            • delivery leftStrapping system                                             • StrapexCondition                                             • cleaned working condition

Machine number                           1070Built in                                           2009Infeed height                                 850 - 900 mmDelivery height                              850 - 900 mmbundle height                  max        300 mmProduct width                                148 - 315 mmProduct length                               210 - 430 mmProduct diagonal             max.       510 mm Cycle per layer                              0,9 s

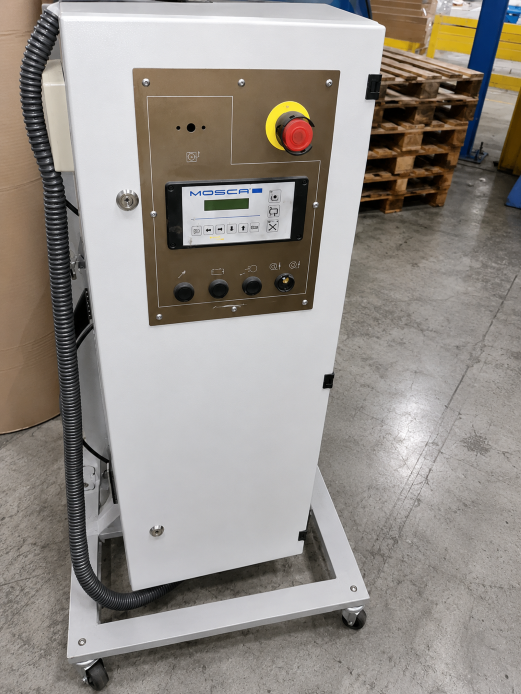

Built in                2004Configuration:                  Left-hand deliveryEquipped with:                  Left-hand delivery                  Mosca strapping unit Applications:  Offset and gravure signatures Mechanical Infeed Speed:  Maximum 1.0 m/s Cycle Time:          Minimum 32 s/log Signature Sizes:                  Minimum: 200 × 110 mm (7 7/8" × 4 3/8")                  Maximum: 480 × 320 mm (18 7/8" × 12 5/8") Page Count:                  Depending on paper quality and basis weight                  Minimum: 4 pages                 Maximum: 144 pagesCompressed Log Length:                  Standard machine: 800 to 1,200 mm (31 1/2" to 47 1/4")                  With special insert (optional): 500 to 860 mm (19 3/4" to 33 7/8") Strapping System:         MoscaStrapping Material:                  12 mm (15/32") wide PP or PET strap Endboard Hopper Capacity:                  Maximum 100 endboards with 10 mm (3/8") thickness Endboard Thickness:                  Minimum: 5 mm (3/16")                  Maximum: 13 mm (1/2") Endboard Insertion: Automatic Shingle Spacing:                  Minimum 30 mm (1 1/8") Shingle Side Variation:                  Maximum ±15 mm (5/8") Power Consumption:                 Approx. 4.5 kW (with manual crane)                  Approx. 4.0 kW (without manual crane) Air Consumption:                  5 Nm³/h at 6 bar (3 cfm at 90 psi) Machine Weight:                  4,100 kg (9,000 lb)

Built in                                    2004Configuration:                                                 Left-hand deliveryEquipped with:                                                 Left-hand delivery                                                 Mosca strapping unit Applications:                          Offset and gravure signatures Mechanical Infeed Speed:    Maximum 1.0 m/s Cycle Time:                            Minimum 32 s/log Signature Sizes:                                                 Minimum: 200 × 110 mm (7 7/8" × 4 3/8")                                                 Maximum: 480 × 320 mm (18 7/8" × 12 5/8") Page Count:                                                 Depending on paper quality and basis weight                                                 Minimum: 8 pages                                                Maximum: 144 pagesCompressed Log Length:                                                 Standard machine: 800 to 1,200 mm (31 1/2" to 47 1/4")                                                 With special insert (optional): 500 to 860 mm (19 3/4" to 33 7/8") Strapping System:                 Mosca RO-TRC-3 Strapping Material:                                                 12 mm (15/32") wide PP or PET strap Endboard Hopper Capacity:                                                 Maximum 100 endboards with 10 mm (3/8") thickness Endboard Thickness:                                                 Minimum: 5 mm (3/16")                                                 Maximum: 13 mm (1/2") Endboard Insertion:               Automatic Shingle Spacing:                                                 Minimum 30 mm (1 1/8") Shingle Side Variation:                                                 Maximum ±15 mm (5/8") Power Consumption:                                                Approx. 4.5 kW (with manual crane)                                                 Approx. 4.0 kW (without manual crane) Air Consumption:                                                 5 Nm³/h at 6 bar (3 cfm at 90 psi) Machine Weight:                                                 4,100 kg (9,000 lb)

Type: LS/1120Product size: Width min 200 mm, max 520 mm, lenght min 100 mm, max 320 mmProduct thickness: min 0,2 mm, max 4,5 mmStream thickness: max 25 mm (compressed)Shingle distance: 40 mm at normal max 80 mmEdge offset: +/- 3 mmFold orientation: Spine leading (inversed shingle stream)Page count: min 8 page, max 96 pagePaper wight: min 30 g/m2, max 140 g/m2Bundle lenght: min 600 mm, max 1200 mmEndboard: same as product size, Thickness min 9,5 mm, max 12,5 mmOperating speed: 24 sec. per bundleBelt speed: min 7,5 m/min, max 50 m/minStraping head: Mosca MK-43Strap material: 12 mm width poly propylene

Number of pages max 4-96Trimm cut-off max 3-50 mmPaper weight (grammage) max 4 pages/min 80 g/qmPaper weight (grammage) 8-48 pages/40-120 g/qmPaper weight (grammage) 64 pages/max 90 g/qmPaper weight (grammage) 72-96 pages/max 60 g/qmSize max 490 x 465 mmSize min 140 x 105 mmSpeed max 64.000 c/h

Number of pages max 4-96Trimm cut-off max 3-50 mmPaper weight (grammage) max 4 pages/min 80 g/qmPaper weight (grammage) 8-48 pages/40-120 g/qmPaper weight (grammage) 64 pages/max 90 g/qmPaper weight (grammage) 72-96 pages/max 60 g/qmSize max 490 x 465 mmSize min 140 x 105 mmSpeed max 64.000 c/h

Size: max 720 x 1.040 mm; min 360 x 520 mm thickness (sealed materials): max 0,5 mm; min 0,06 mm Overall dimensions (w x h x l): 3.340 x 8.960 x 2.175 mm Weight: 26.920 kg Equipment  • steel plate feeder & delivery • Unimatic C3 remote control • automatic paint adjustment from the control panel • lateral, linear and diagonal register from a computer • powder sprayer Perfecting • 2/2-4/0

Baujahr 2007Hunkeler UW6/R Ab-/AufwicklerHunkeler UW 6 unwinding stationmaximum reel diameter 1320mmweb width 165 – 520mmpaper weight 40 – 300GSMweb speed 10 -220m/mintouch screen controladjustable photocell maximum & minimum reel diameter

Year                                             2016DescriptionProduct Length:                                                    Minimum: 180 mm (7.09")                                                    Maximum: 500 mm (19.70")Product Width:                                                    Minimum: 145 mm (5.71")                                                     Maximum: 320 mm (12.60")Compressed Log Length:                                                    Minimum: 700 mm (27.56")                                                    Maximum: 1,200 mm (47.24")Maximum Log Weight:                                                    170 kg (375 lbs)Cycle Time:                                                    17 seconds (product dependent)Palletizing Height:                                                    Bottom edge of log: 100 mm (3.93")                                                    Top edge of log: 1,500 mm (59.06")Pick-Up Height:                                                    900 mm (35.43")Electrical Supply:                                                    400 V                                                    3 Phase (3~)                                                    N + PE                                                    50/60 Hz                                                    Installed Power: 1.6 kW Compressed Air Requirement:                                                    65 l/min at 6 bar (87 psi)                                                    Maximum of 4 cycles per minute                                                    Hose connection: Ø 13 mmMachine Weight:                                                    1,300 kg (2,870 lbs)

Built in: 2016 Length: 1.600 mm Width: 1.000 mm Height: 2.200 mm

“A“ Dimension 102 mm, 320 mm“B“ Dimension 145 mm, 500 mm“D“ Dimension limited by “A“ & “B“ limited by “A“ & “B“Thickness 4 pages 57 g/m, 96 pages 57 g/mSpeed product permitting 90 000 products per hourStack height RS 34S-17 upper bin total stack 254 mm 432 mmProduct orientation Spine leading (preferred), spine to the side (product permitting)Weight 945 kg (2100 lb)Optionsleft / right delivery, servo turntable, high-infeed

Built in: 2007 Size: max 480 x 320 mm; min 200 x 110 mm bar length (pressed): max 1200 mm; min 800 mm Type of pallet: Euro pallet  Cycle time: min 30 s/unit Air requirement: 10 Nm3/h @ 6 bar Electrics: 380 VAC Electrics: 3 PH Electrics: 50 Hz Electrics: 5,5 kW Dimensions (L x W x H): 2000 x 3000 x 3100 mm Weight: 2000 kg

Built in                                          2006Size                                max        500 - 330 mm                                       min         105 - 140 mm Size (diagonal)              max        560 mmNumber of pages           max        128 St.                                       min         4 St.Pile height                      max.       300 mmsection height                 max        200 mmInfeed height                                 560 – 970 mmDelivery height                              887 mmCycle per layer                              1,2 - 1,5 sAir consumption                            1.020 Nl/min (@ 1 bar)Voltage                                          400, 3~, N, PE VSicherung                                      25 AFrequency                                     50 HzLength                                           3.372 mmWidth                                             1.038 mm Height                                            2.056 mm

Built in 2014  - Performance/Speed: 55.000 cph (product permitting) - min format product (head/foot x spine): 102 mm x 152 mm (4.00" x 6.00") - max format product (head/foot x spine): 321 mm x 500 mm (12.63" x 19.68") - max pagination: 64p tab & magazine, 32p digest & delta - Product orientation: Spine leading - Low Infeed  - Infeed height (min/max in mm): 500-1000 mm  - Waste gate  - Stream Aligner / Jogger - Single squeeze roller  - Laser Counter, model: Scatec-2 - Upper bin height in mm: 127 mm - Upper Bin with Flipper Fingers  - Turntable with compression plates - max Stack height in mm: 330 mm - Pneumatic turntable - Pneumatic pusher - Delivery Direction to the right - Delivery height in mm: 876 mm (34.50“) - Delivery Table included  - Over all length equipment: 2514-2759 mm - Over all width equipment: ~700 mm - Over all height equipment: ~1800-1950 mm - Input Power: 3 kVA - Voltage: 400 V, 3 Ph, 50/60 Hz - Air requirement: 110 l/min @ 5.5 bar (6 cfm @ 80 psi) - Weight: 900 kg (2000 lb) - Equipment at warehouse Helmstedt, airports: Hannover (~1 hr), Berlin (~2 hrs) - Condition: cleaned & in working conditions

Size: max 500 - 330 mm; min105 - 140 mm Size (diagonal): max 560 mm Number of pages: max 128 St.; min 4 St. Pile height: max. 300 mm section height: max 200 mm Infeed height: 560 – 970 mm Delivery height: 887 mm Cycle per layer: 1,2 - 1,5 s Air consumption: 1.020 Nl/min (@ 1 bar) Voltage: 400, 3~, N, PE V Sicherung: 25 A Frequency: 50 Hz Length: 3.372 mm Width: 1.038 mm Height: 2.056 mm Weight: ca. 1.400 kg Optional equipment: not included! Blocking device VM 500

Built in: 1995 Product dimensions: max 480 x 320 mm; min 200 x 110 mm bar length: 800-1200 mm Type of pallet: Euro pallet .  Pallet height (incl. pallet): max 1450 mm Cycle time: min 30 s/unit Air requirement: 10 Nm3/h @ 6 bar Electrical: 380 VAC Electrical: 50 Hz Electrical power: 5,5 kW Dimensions (L x W x H): 2000 x 3000 x 3100 mm Weight: 2000 kg Equipment control • Siemens • Palette despencer • Pallet conveyor line

Size:  max 500 x 330 mm  min 140 x 150 mm Product thickness:  side 4-96 Seiten Speed:  max 100.000 Ex./h Pile height 300 mm Infeed height 500-1920 mm Delivery height 890 mm Power requirements 2 kW (220/380V, 50Hz) Length 3077 mm Width 894 mm Height 1835 mm Weight 960 kg (approx.)

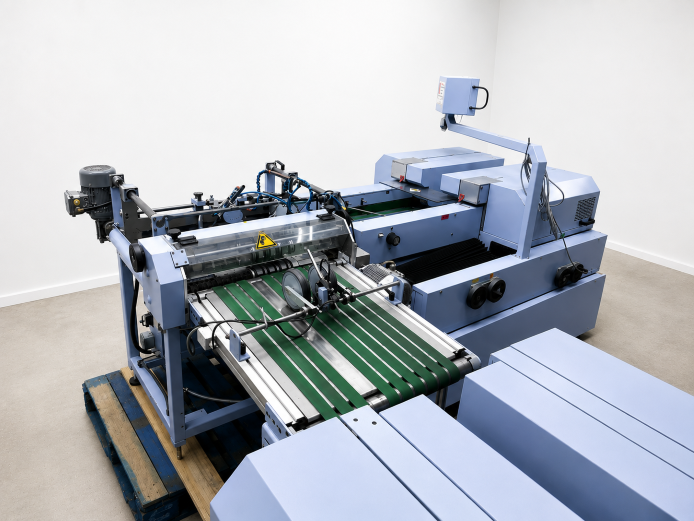

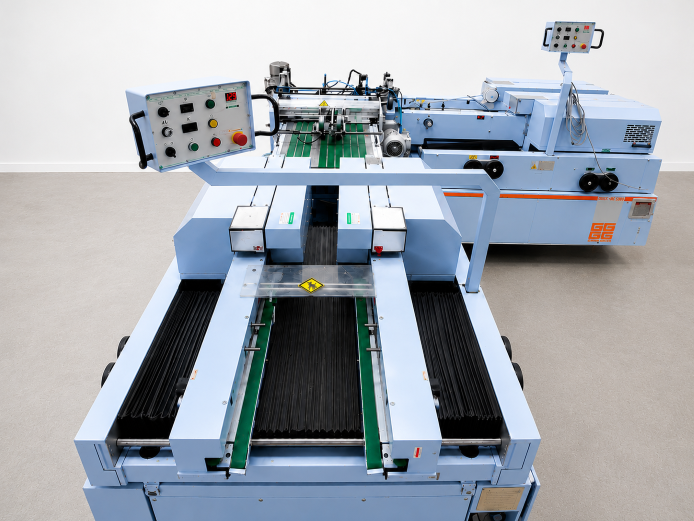

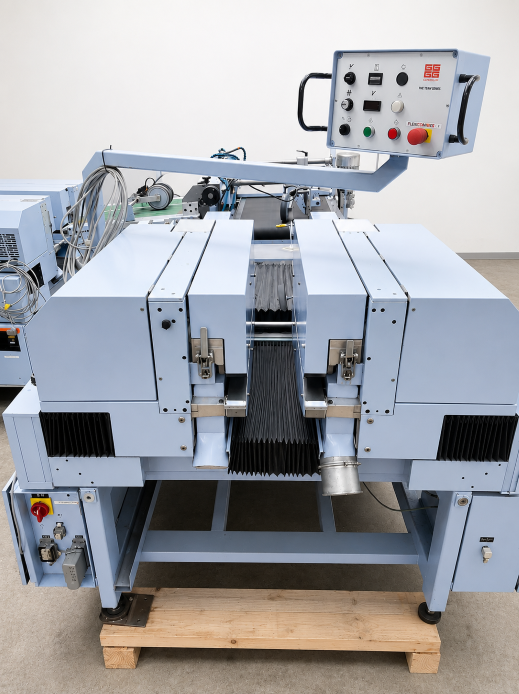

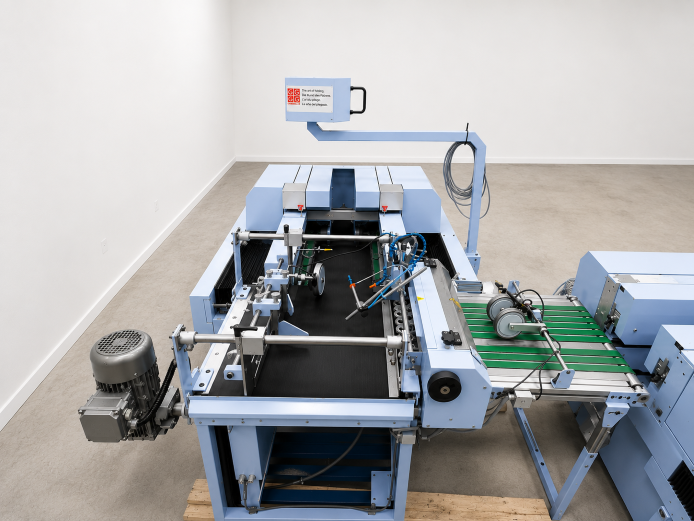

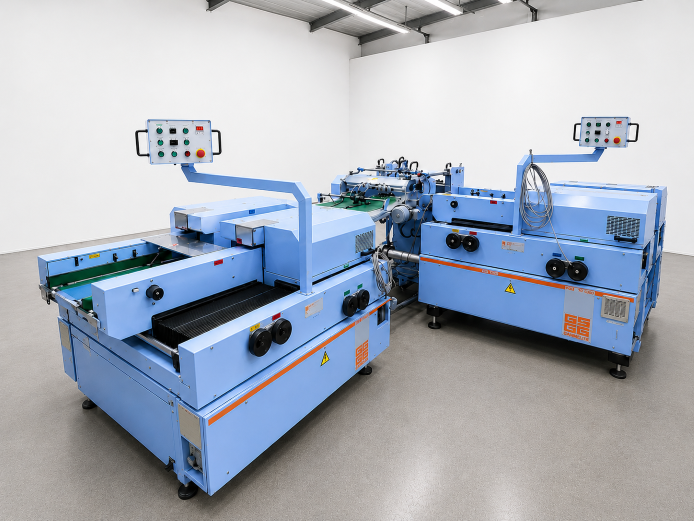

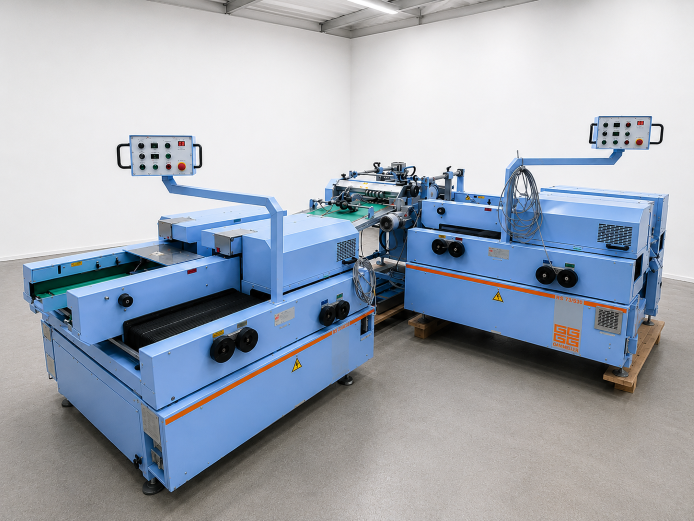

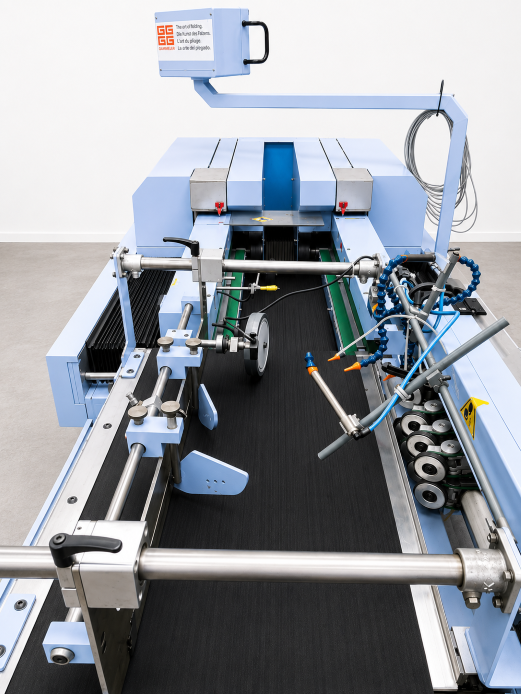

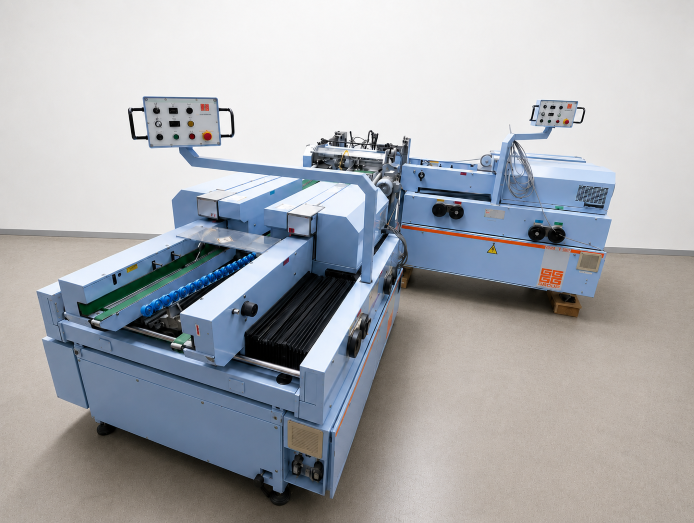

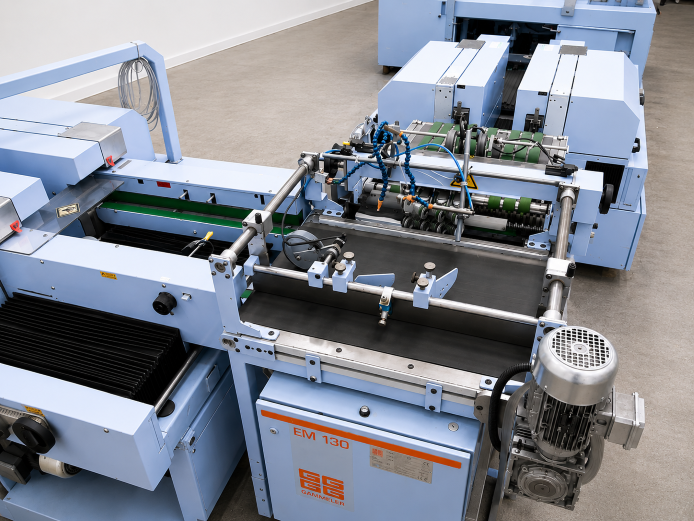

Built in 2002 Equipment: Automatic rotary cutting line consisting of: 4 rotary cutters /Trimmers, Gämmerler RS134/D , 2 press stations, Gämmerler PS300, 3 lifting table elements, Büter, 4 adjustable corner-curve units, conveyor belts and feeder belts,
