Built in                                          2012Size                                max        360 x 310 mm                                       min         140 x 100 mmBook block thickness      max        60 mm                                        min         3 mmCover size                       max        642 mm                                        min         203 mmSpeed                             max        18.000 c/hEquipment                                    gathering machine       . chain tensioner       . 18 stations       . 18 feeders 3681       . reject gate 3714        controls       . miss and double sheet control

Built in: 2011Size: max 320 x 485 x 60 mm; min 100 x 140 x 2 mmBlock hang-up: 8-15 mmMilling depth: max 4 mmClamp opening: max 80 mmPaper weight (grammage): min 60-170 g/qmCover width: 202-710 mmCover height Drum feeder: 140-490 mmCover height Stream feeder: 140-470 mmMechanical speed: 8.000 c/hEquipment gathering machine•   hand feeding station•   16 stations•   criss-cross deliveryperfect binder•   19 clamps•   milling station•   scoring station•   hot melt spine gluing unit•   hot melt side gluing unit•   PUR spine gluing unit•   2 premelters•   premelter for PUR gluing unit•   cover feederthree knife trimmer•   conveyor belt to trimmer with reject unit•   three knife trimmer Euro Trim Pro

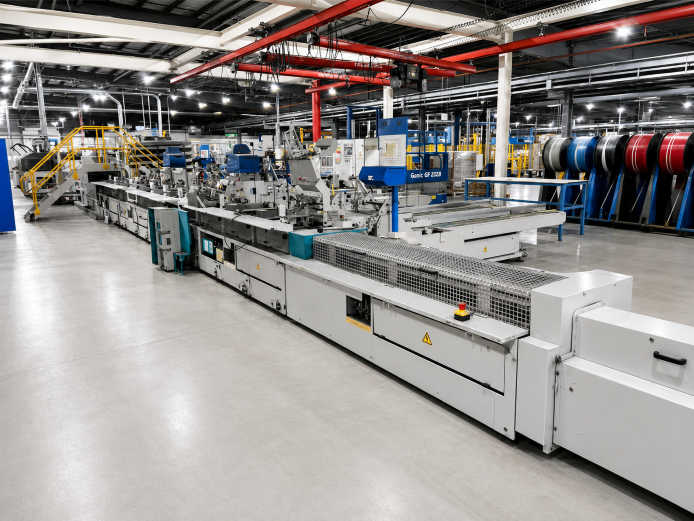

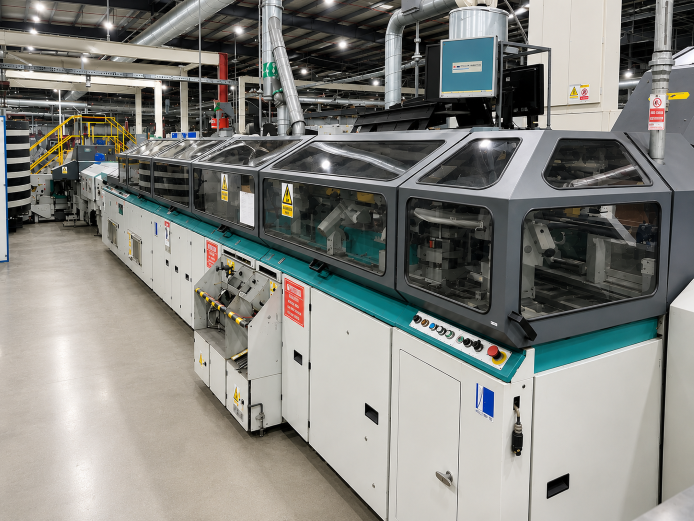

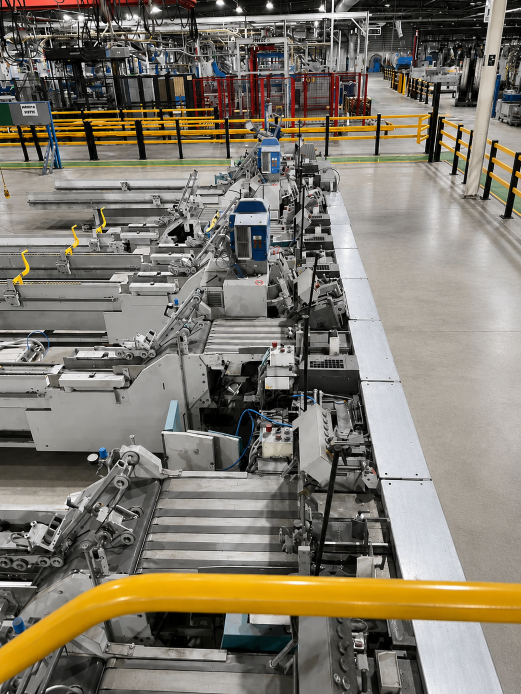

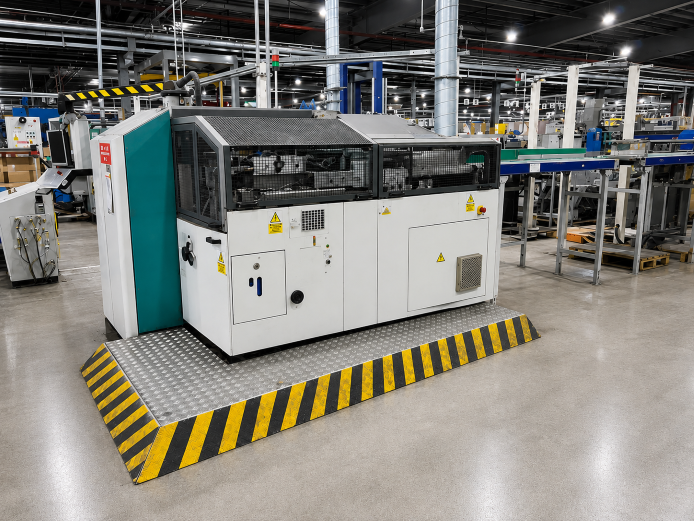

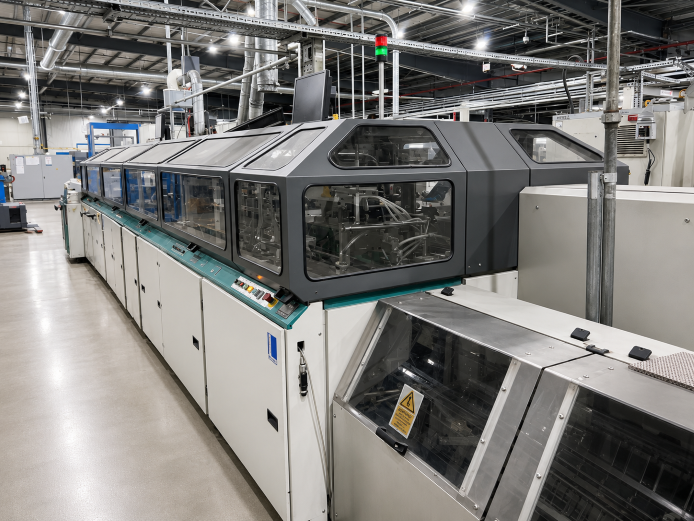

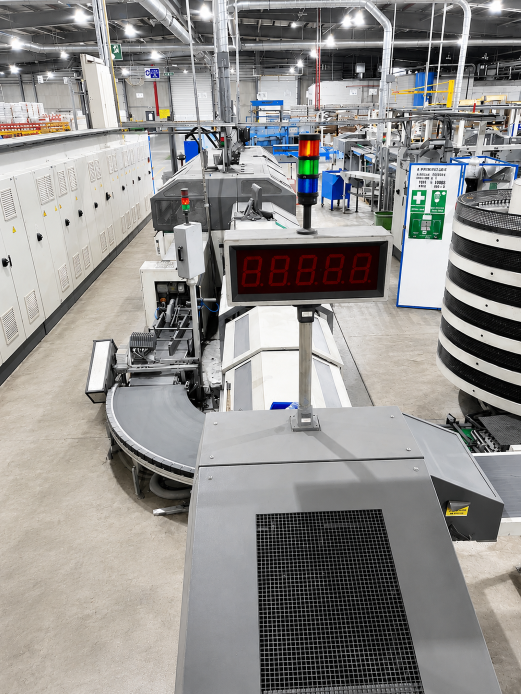

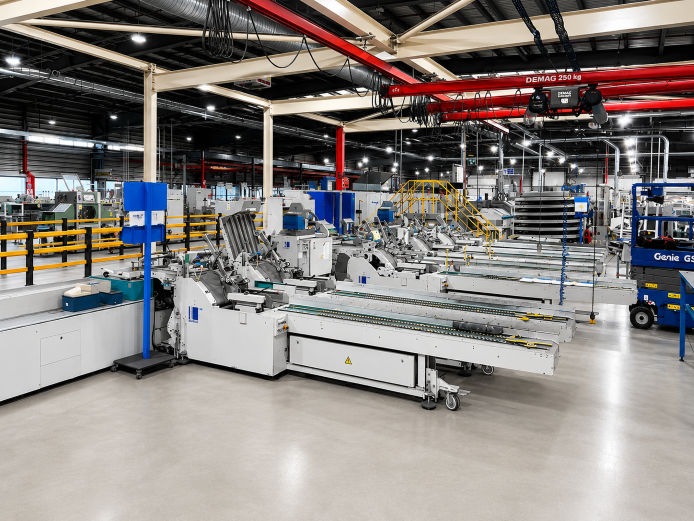

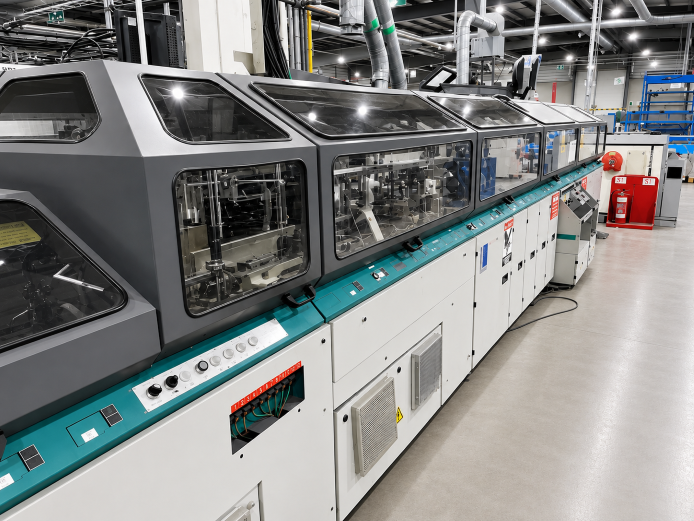

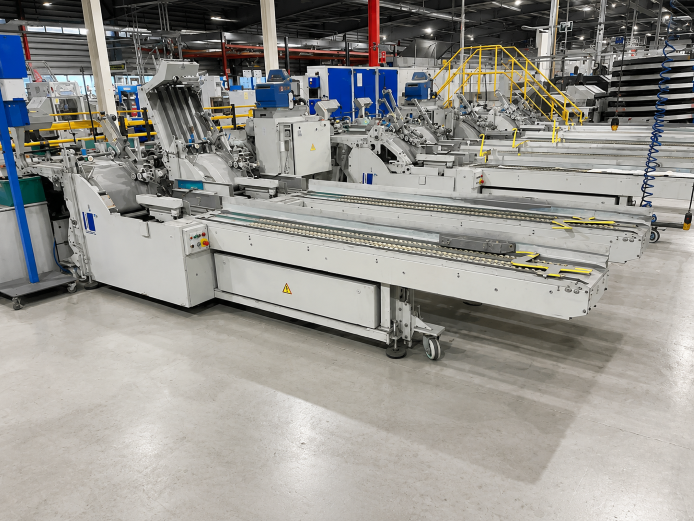

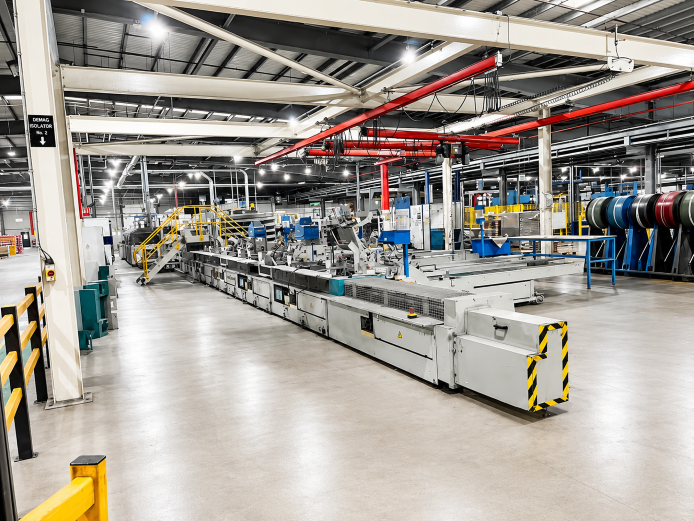

Equipment  gathering machine • 6 stations • gatherer Ferag • reject unit • 2 jogging elements perfect binder • perfect binder Publica KM 410 • copilot with touch screen • 40 clamps • infeed incl. coupling with ZU • 2 milling stations • strip milling head • 4 spine preparation stations • hotmelt spine gluing unit • 2nd hotmelt spine gluing unit • hotmelt side gluing unit • 3 premelters • stream cover feeder SAL 411 • cover scoring 4 lines • 2 pressing stations • straight delivery • lay down device • quality control with individual product rejection conveyor system • length ca. 50 m • drying tower XAF • intermediate delivery • belt control cabinet TS.E three knife trimmer • three knife trimmer HD 152.P • right hand infeed with pre stacker • copilot with touch screen • cutting tables • knife adjustment device • 2 sets of knives compensating stacker • compensating stacker CB 16 • counting device • delivery right

Built in: 2001 Size: max 360 x 310 mm, min 140 x 100 mm Book block thickness: max 60 mm, min 3 mm Cover size: max 642 mm, min 203 mm Speed: max 18.000 c/h Equipment  gathering machine • chain tensioner • 18 feeders 3681 • reject gate 3714 controls • miss and double sheet control • ASAC automatic self-adjusting calipers intermediate elements • 2 jogging elements 3642 • connected with perfect binder • commander • 41 clamps • infeed chanel with jogger • 2nd milling station with pressing roller • double combined spine preparation station • 2 hot melt spine gluing units • hot melt side gluing unit • 3 premelters • SF stream cover feeder • SF cover nipping and pressing station • 2nd SF cover pressing station • smooth lay down device conveyor system • connected with • three knife trimmer Zenith S optionales Equipment:--not included-- • compensating stacker • shrink wrapping • palletizer

Built in: 2005 Size: max 510 x 310 x 60 mm, min 140 x 100 x 3 mm Book block thickness: max 60 mm, min 3 mm Cover size: max 642 mm, min 203 mm Speed: max 12.000 c/h Equipment: gathering machine • 18 stations • 18 feeder 3695/24 • reject gate 3614 • 2 jogging elements perfect binder • 22 clamps • clamp pitch 24" • jogging station • spine preparation • milling and roughening station • grinding station • hotmelt spine gluing unit • hotmelt side gluing unit • 2 premelters • stream cover feeder • SF cover pressing station • 2nd SF cover pressing station • lay down device three knife trimmer • conveyor belt to trimmer • Trimmer: MM Zenith-S

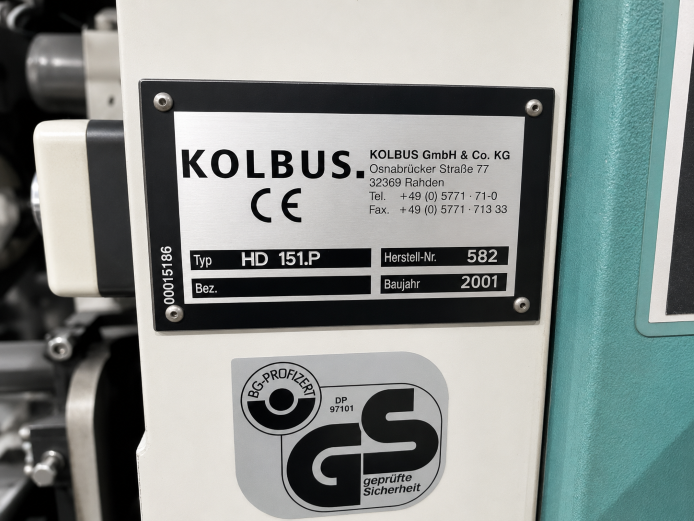

Built in: 2001-2003 Size: max 290 x 420 x 65 mm; min 100 x 105 x 3 mm Speed: max 15.000 c/h Equipment  gathering machine • chain tensioner • 12 stations • gatherer ZU 840 • 8 streamfeeder STA 840 • reject unit AS 840 controls • opticontrol signature image reader intermediate elements • reject unit • jogging element perfect binder • Copilot • Monitor control • 23 clamps • jogging station • resting table • fold pressing station • milling and roughening station • equalizing-leveling station • hotmelt spine gluing unit • hotmelt side gluing unit • 2 premelters • stream cover feeder • cover pressing station • smooth lay down device conveyor system • bypass for splitting saw splitting saw • turnover belt • connected with three knife trimmer • destacker • information three knife trimmer: HD 151 P compensating stacker • information compensating stacker: Müller Martini CB 16 standard accessories • pv pressure-vacuum pump • 1 set of electrical diagrams • 1 set of spare part catalogues • 1 set of tools further information • machine can be tested in production • condition: working condition

Size: max 510 x 310 x 60 mm; min 140 x 100 x 3 mm Book block thickness: max 60 mm; min 3 mm Cover size: max 642 mm; min 203 mm Speed: max 12.000 c/h Equipment  gathering machine • 18 stations • feeders 3691 • reject gate 3614 controls • miss and double sheet control • ASAC automatic self-adjusting calipers intermediate elements • spiral race away • 3 jogging elements • connected with perfect binder • 21 clamps• milling and roughening station • 2 hot melt spine gluing units • hot melt side gluing unit • 2 premelters • SF stream cover feeder • SF cover nipping and pressing station • smooth lay down device conveyor system • ca. 30 m • connected with three knife trimmer • three knife trimmer MM Zenith 3672 compensating stacker • compensating stacker Müller Martini standards • standard accessories • 1 set of operator manuals • 1 set of electrical diagrams • 1 set of spare part catalogues • 1 set of tools

Size:  max 510 x 305 x 60 mm  min 140 x 100 x 3 mm Cover size:  max 640 mm  min 203 mm Speed: max 10.000 c/h Equipment  gathering machine: 15 feeders 256 perfect binder: 20 clamps milling and roughening station hot melt spine gluing unit hot melt side gluing unit premelter S stream cover feeder cover nipping and pressing station lay down device optionales Equipment:--not included-- - PUR Leimbecken

Built in 1997 Size max 320 x 400 x 45 mm min 105 x 145 x 2 mm Speed max 2.500 c/h Equipment  perfect binder • hand fed station • 6 clamps • hotmelt spine gluing unit • premelter • cover feeder • cover scoring 4 lines • cover pressing station • conveyor belts trimmer • Horizon HT 70

Built in 2004 Size: max 430 x 320 x 60 mm Size: 140 x 100 x 3 mm working hours: 27.900 h Speed: max 5.000 c/h Equipment gathering machine • 18 stations • 18 feeder 1571 controls • ASIR automatic signature image reader • ASAC automatic self-adjusting calipers perfect binder • 20 clamps • double kombined spine preparation station • hotmelt spine gluing unit • hotmelt side gluing unit • rotary coverfeeder • cover scoring • cover pressing station • 2nd cover pressing station • lay down device three knife trimmer • conveyor belt to trimmer • three knife trimmer Müller Martini Zenith S • compensating stacker optional equipment --- not included --- • PUR spine gluing unit • PVA (cold glue) spine gluing unit

Built in 1990 Size max 420 x 305 x 60 mm min 140 x 100 x 3 mm Book block thickness max 60 mm min 3 mm Cover size max 642 mm min 203 mm Speed max 6.000 c/h Equipment  gathering machine • 18 stations • 18 feeders 272 • connected with perfect binder • 20 clamps • infeed chanel with jogger • jogging station • resting table • fold pressing station • milling and roughening station • hot melt spine gluing unit • hot melt side gluing unit • premelter • pile cover feeder • cover nipping and pressing station • smooth lay down device three knife trimmer • conveyor belt to trimmer • three knife trimmer Müller Martini 3670

Built in: 1997 Size: 460 x 310 x 60 mm Speed: 6.000 c/h Equipment:  gathering machine: • 16 stations • gatherer ZU 801 controls: • missing and double sheet control intermediate elements: • spiral raceway • hand fed • jogging element • -connected with perfect binder: • 21 clamps • jogging station • milling and roughening station • hotmelt spine gluing unit • hotmelt side gluing unit • premelter • gauzing station • stream cover feeder • cover scoring 2 to 6 lines • cover pressing station • lay down device • shingle conveyor delivery conveyor system: • conveyor system ca. 20m • connected with three knife trimmer: • conveyor belt to trimmer • three knife trimmer Kolbus HD 150 optional - not included: • opticontrol signature image reader
