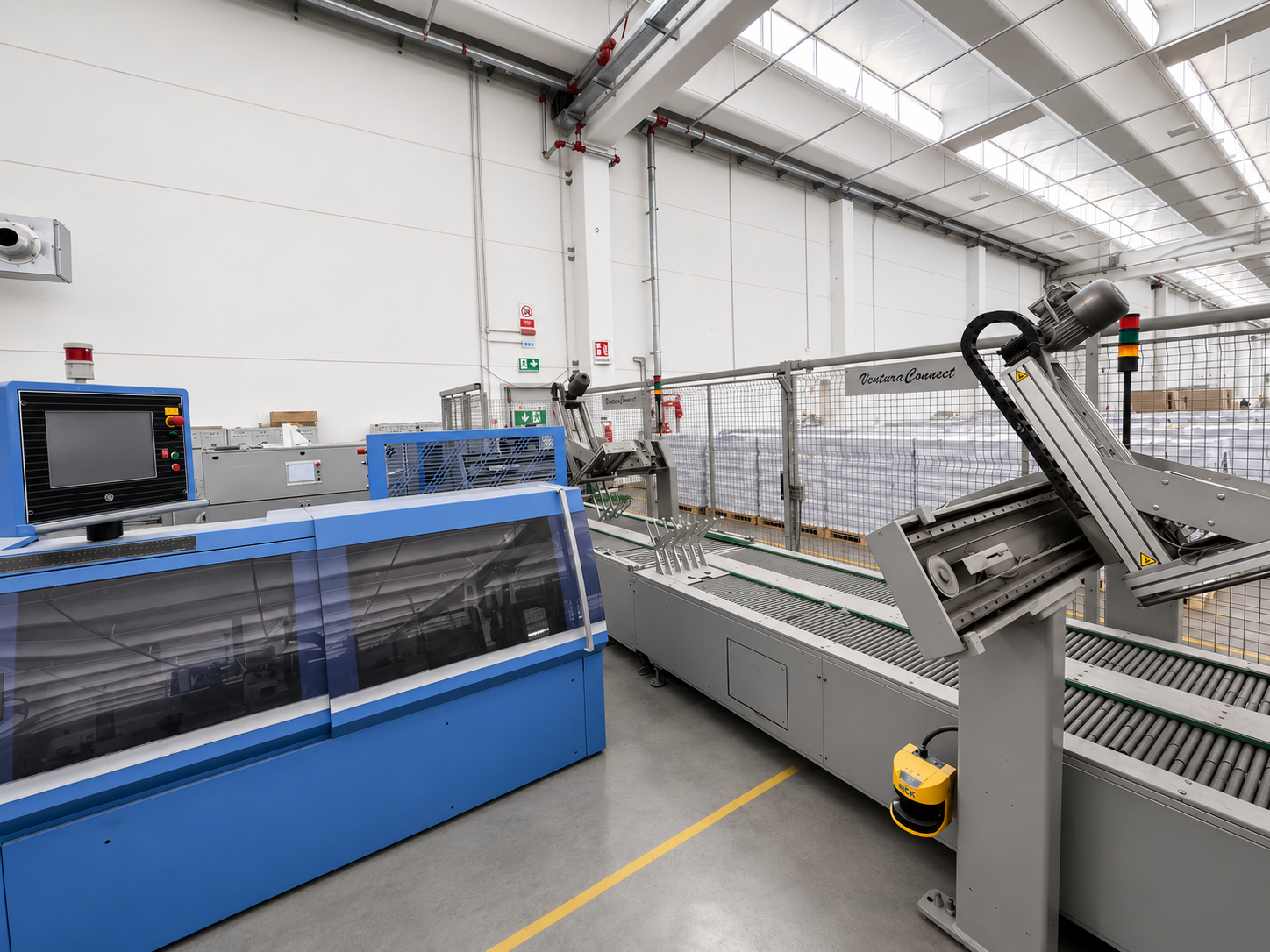

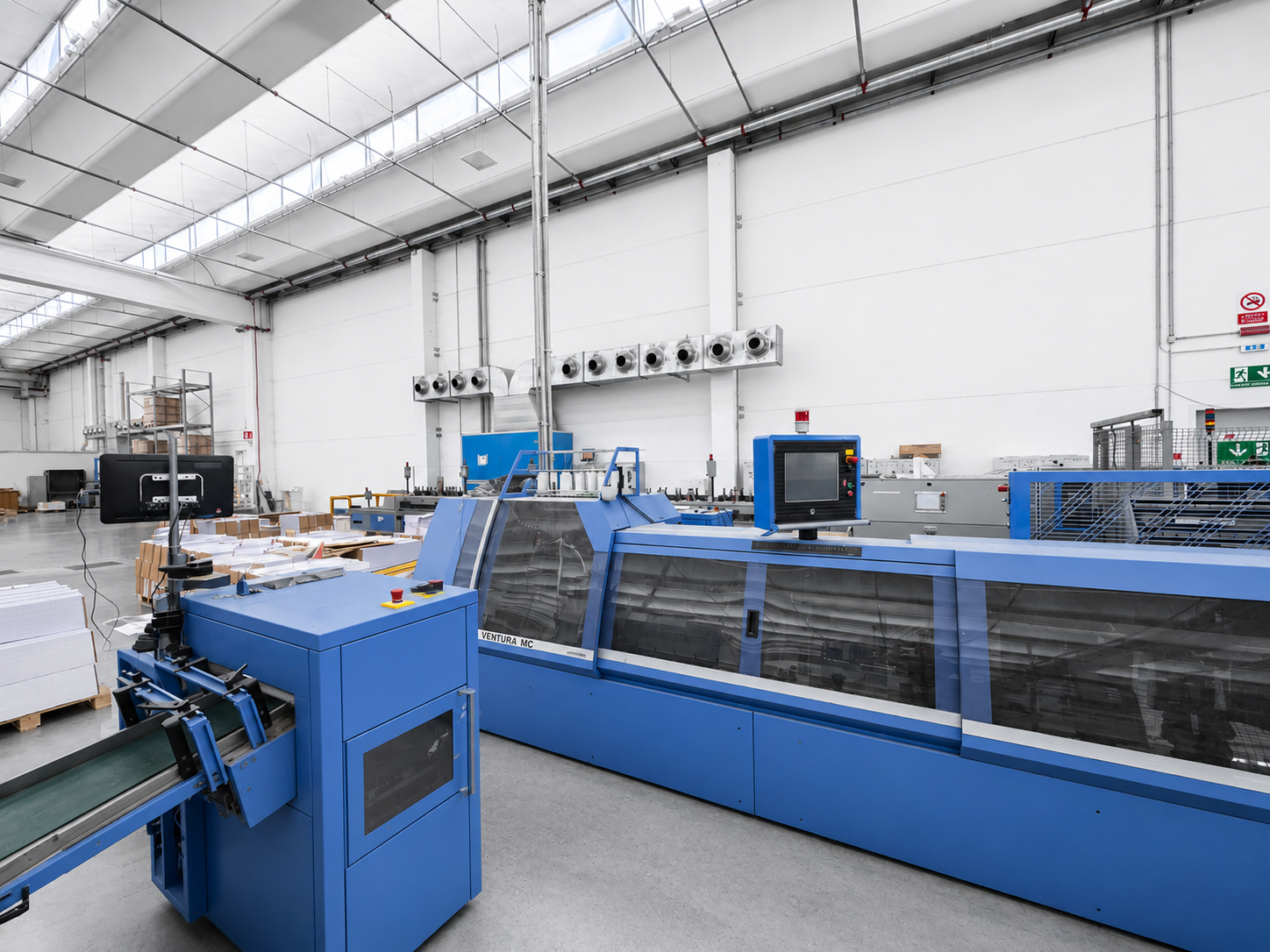

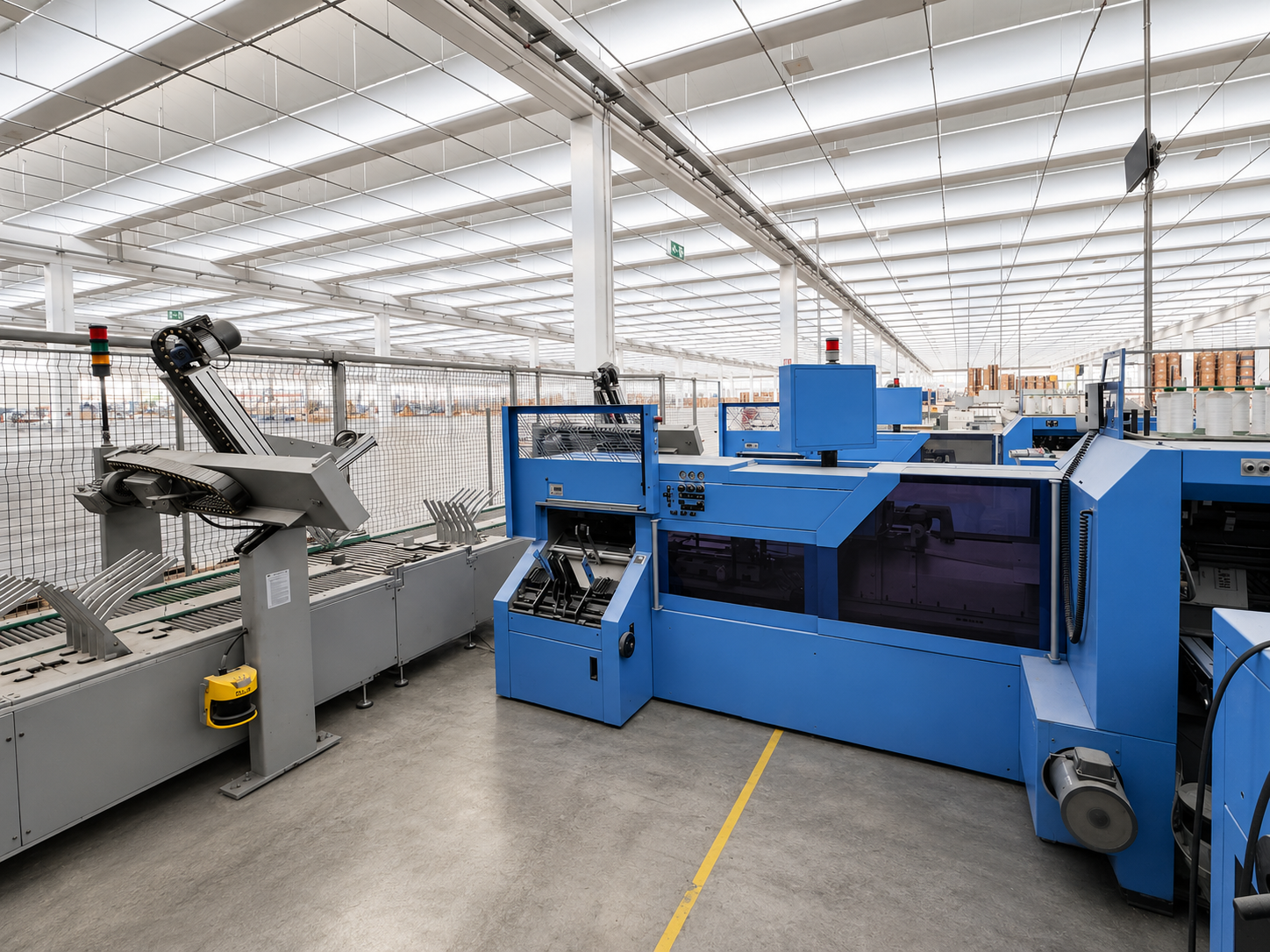

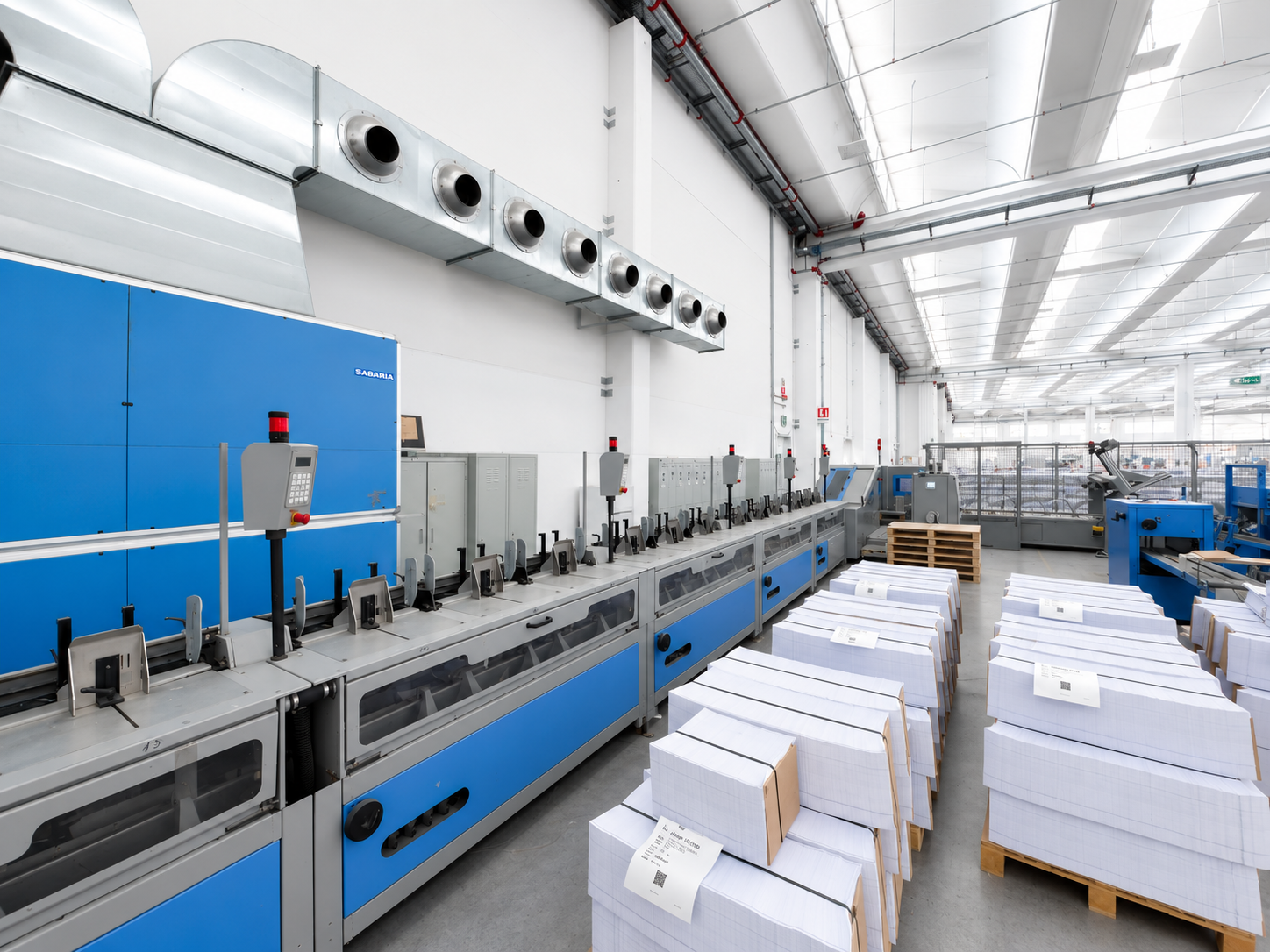

Built in:                                     2013/14VenturaConnect the integrated book sewing system The Ventura MC can be in-corporated in the Ventura-Connect book sewing system. For this the proper connect system connects a gathering machine with two Ventura machines. Gathering machine: Müller Martini 3693- Hand feeding station- Number of gathering stations: 15- ASIR Automatic Signature Image Recognition, model: ASIR III- ASAC automatic self adjusting calliper- Pump(s) Gathering machine signature size range - max.     510 x 320 mm- min.      120 x 100 mm- Distribution unit: Muller Martini Connect 3241- Colour monitor with touch screen- Stacking unit- Distribution section into 2 sewing machines Sewing machine (1)Müller Martini Ventura MC 3215Year:                                        2013/14- Commander with touchscreen- Semi automatic setting- Feeder- Book stacker- Roller table delivery Sewing machine (2)Müller Martini Ventura MC 3215Year:                                        2013/14- Commander with touchscreen- Semi automatic setting- Feeder- Book stacker- Roller table delivery Sewing machines signature size range:- max.     510 x 320 mm- min.      140 x 100 mm

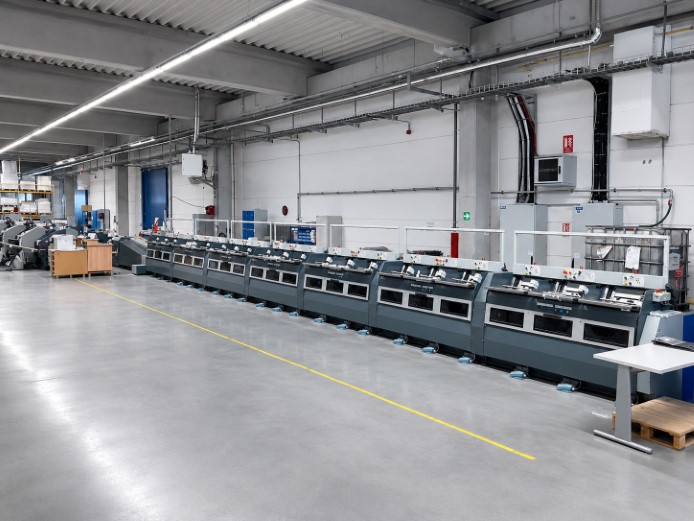

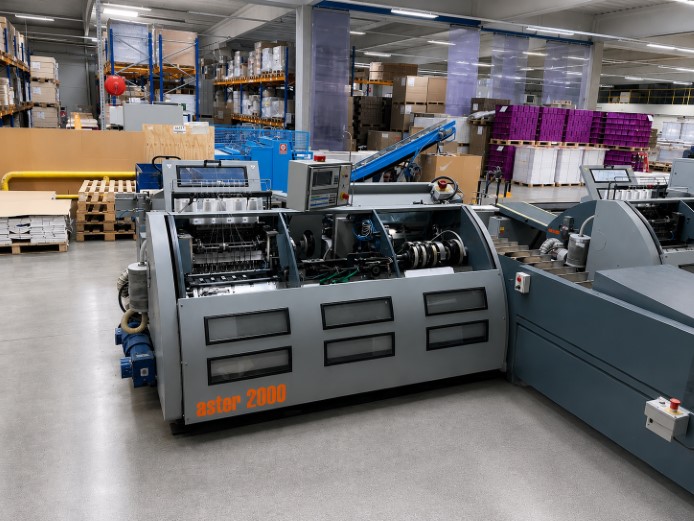

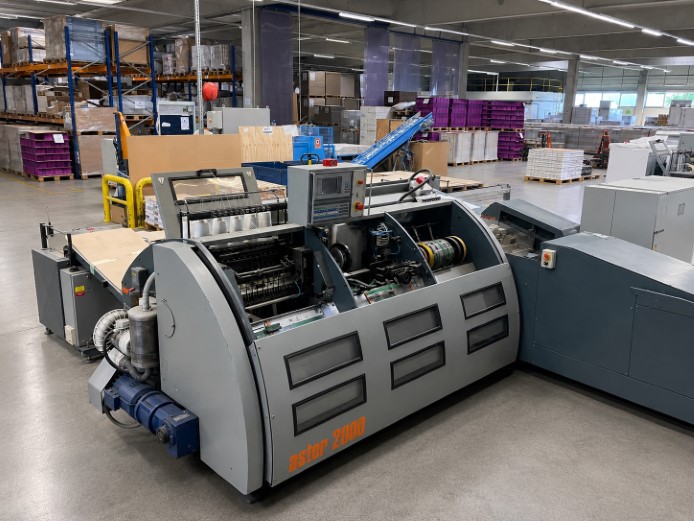

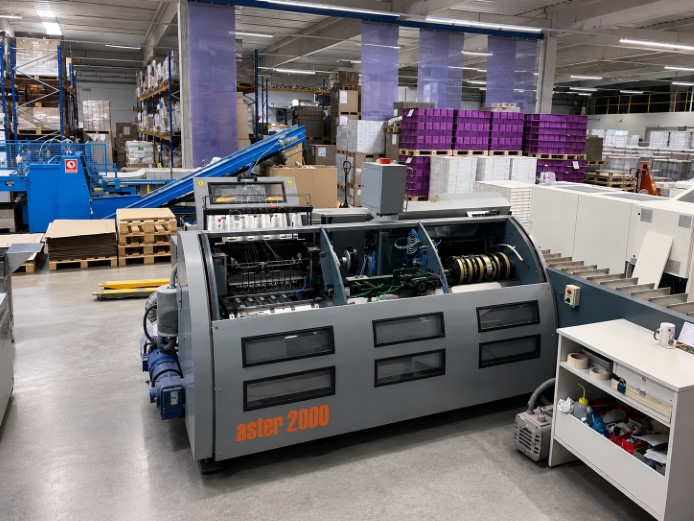

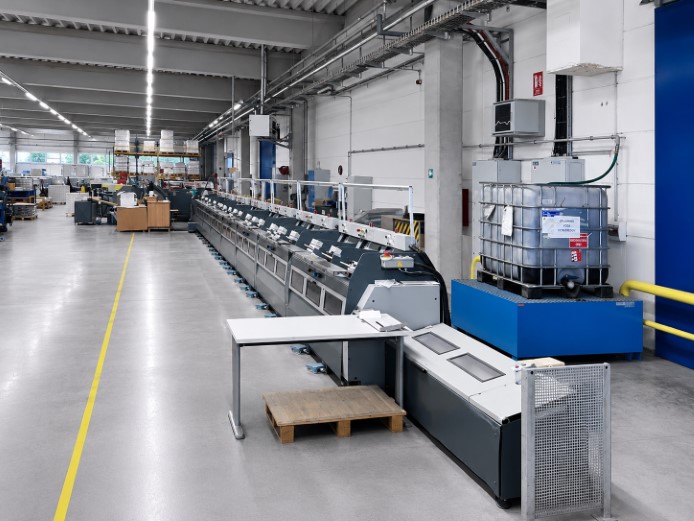

Specifications:Maximum size                                      320 x 440 mmMinimum size                                       100 x 150 mmMax speed MX gathering machine       100 cycles/minMax stack height - Plus stacker            150 mm Consisting of:Gathering machine:                            Raccoglitrice MX- Hand feeding station- Number of gathering stations: 21- Optical sheet control- Pump(s)- Distribution unit: MX Modulo- Colour monitor with touch screen- Distribution section into 3 sewing machinesSewing machine (1) Meccanotecnica Aster 2000Year:                                                       1998- Automatic setting- Pre-loader sistema- 4 + 4 opening possibilities- Plus stacker- Including pumpSewing machine (2) Meccanotecnica Aster 2000Year:                                                       1998- Automatic setting- Pre-loader sistema- 4 + 4 opening possibilities- Plus stacker- Including pumpSewing machine (3) Meccanotecnica Aster 2000Year:                                                        1998- Automatic setting- Pre-loader sistema- 4 + 4 opening possibilities- Plus stacker - Including pump

Size                                max        360x310 mm                                       min         100x85 mmNumber of stitches          Standard 2-10                                       Staggered 2-5                                       Continuous 2-9 Stitching length                             15,7 mmSpeed                            max        9000 c/h                                      min         900 c/hPower requirements                    1,8 kW  (220/380V, 50Hz)Length                                          4744 mmWidth                                            1035 mmWeight                                          3135 kg (approx.) Equipment                                  •   1 set of tools •   1 set of electrical diagrams •   1 set of operater manuals •   1 spare part catalogue •   standard equipment

Machine number                           20703-14303Built in                                          1989Size                                max        320 x 420 mm                                       min         90 x 150 mmSpeed                            max        9000 c/hNumber of stitches                       Standard 11 Power requirements                     2,5 kW  (220/380V, 50Hz)Air requirement (6 bar)                 200 m³/hLength                                          2530 mmWidth                                            1550 mmHeight                                           1600 mm Weight                                          2300 kg (approx.)

Year:                                          2005Equipment                                 Size max 320 x 420 mm                                                    min 75 x 150 mmSpeed                                          max 10800 c/hNumber of stitches                       Standard 11 Power requirements                     6 kW  (220/380V, 50Hz)Air requirement (6 bar)                 200 m³/hWidth                                            2730 mmDepth                                           1800 mmWeight                                          3000 kg (approx.)Equipment                                    fully automatic book sewing machine                                                    •   automatic feeder                                                    •   4 upper and 4 lower signatures opener                                                    •   computer program                                                     •   thread cut-off deviceCondition                                       Very clean in top working condition machine was                                                         refurbished in 2024

Size: 320 x 420 mm; min 75 x 150 mmSpeed: max 9000 Ex./hNumber of stitches Standard: 11 Stitching length: 19 mmPower requirements: 50 Hz, 3 Phasen kW  (220/380V, 50Hz)Compressed air: 4 barWeight: 2300 kg (approx.)Engine speed: 2,5 kw

Built in 1987 Size max 380 x 310 mm Size 150 x 80 mm Number of stitches standard 9  Needle gauge 19 mm Openings available 4 upper, 4 lower Mechanical speed max 150 c/min

Built in: 2002Size: max 320 x 510 x 4 mm; min 80 x 120 mmNumber of stitches: Standard 13 Stitching length: 16,5 mmMechanical speed: 12.000 c/h Equipment                                    automatic setting•   monitor with touchscreen•   feeder•   suction opening 4 + 4•   air pump

Size: max 355 x 250 mm min 115 x 100 mm Speed: max 4200 c/h Number of stitches: standard 7  Dimension: 1500 x 1400 mm
