Typ                                 0451.0400 Maschinen Nr.               MMZO 1 161089-10 Baujahr                          2007 Format               max     480 x 330 mm                            min      148 x 105 mm Leistung            max      30.000/18.000 c/h

Built in                                          2000 Machine Number:                             7021401 Cutting Capacities and DimensionsCutting width:                               1,550 mm (155 cm)Infeed depth:                                1,550 mmMaximum cutting height:              165 mmTable height:                                 900 mmFront table length:                         750 mm Operating DataBackgauge speed:                        up to 300 mm/sCutting speed:                               up to 45 cycles/minFeed speed:                                  30 cm/s Clamping SystemMinimum pressure:                        150 daNMaximum pressure:                       6,000 daNType:                                              high-pressure hydraulic Electrical DataVoltage:                                          380–400 VFrequency:                                     50 Hz Installed power:                              approx. 5.5 kW

Technical Data·       Fully automatic perfect binding machine.·       Suitable for books, catalogs, magazines and softcover production.·       Modular design for integration with gathering, binding and trimming systems.·       High-production industrial binding system.·       EVA hotmelt adhesive application system.·       Automatic cover feeder.·       Automatic book block feeding.·       Milling and spine preparation station.·       Cover creasing and scoring unit.·       Delivery conveyor system.·       PLC-controlled operation with central control panel.Production Capabilities·       Production speed: up to 6,000 cycles/hour depending on configuration.·       Book block thickness range: approximately 2 to 60 mm.·       Maximum book format: approximately 320 x 450 mm.·       Minimum book format: approximately 100 x 105 mm.·       Suitable for short, medium and long production runs.Features·       Automatic thickness adjustment.·       Electronic production monitoring.·       Fast make-ready times.·       Precise spine preparation.·       Consistent adhesive application.·       Robust industrial construction.·       High reliability and low maintenance requirements. ·       Designed for continuous 24-hour production environments.

Built in                          2007Rima RS 600Description·         Straight infeed·         Infeed belt·         Reject unit·         Pressing station·         Turnover belt·         Delivery to rightTechnical DataProduct Format·         Dimension A: min. 100 mm / max. 340 mm·         Dimension B: min. 180 mm / max. 500 mm·         Dimension D: limited by dimensions A & BProduct Thickness·         Min.: 4 pages at 57 g/m²·         Max.: 132 pages at 57 g/m²Compressed Log Length·         Min.: 800 mm·         Max.: 1,200 mmInfeed Height·         Adjustable from 600 to 800 mmDelivery Table Height·         900 mm (left or right)Log Spacing at Infeed·         Min.: 40 mm·         Max.: 80 mm Product Orientation·         Spine leadingSpeed·         Up to 120,000 copies/hour·         Cycle time: 25 seconds (depending on product)Electrical Requirements·         400 V, 3~, N, PE, 50/60 Hz·         40 A·         Connected load: 28 kWAir Requirement·         110 l/min at 6 barWeight·         Approx. 3,500 kgOptions·         Left or right infeed·         Left or right delivery tableRima RS 650·         Automatic compensating stacker for printed products.·         Designed for magazines, newspapers, catalogs and bookbinding products.·         Continuous high-speed stacking operation.·         Servo-controlled stacking technology.·         Gentle product handling for stable stack formation.·         Low maintenance and high reliability.·         Suitable for operation behind bindery equipment, inserters and packaging systems.

Built in                                    2007Mosca RO-TRFully automatic transverse strapping machineCapacity up to 40 bundles/minutePP strap width: 4 - 12 mmHeat-weld sealing system (24V)PLC control with touchscreen interfaceAutomatic strap feeding and threadingAutomatic strap end detectionVariable speed conveyor systemPower supply: 400V / 3 Phase / 50-60HzPower consumption: 2 kVAWeight: approx. 415 kgFeatures·         Fully automatic inline operation·         PLC control system·         Touchscreen operator panel·         Automatic strap feeding and threading·         Automatic strap-end detection and ejection·         Automatic empty-cycle loop ejection·         Wear-free brushless DC drive technology·         Variable conveyor speed·         Electromechanical double press systemMosca RO-TRI-5Fully automatic longitudinal inline strapping machineCapacity up to 36 bundles/minuteDouble strapping up to 18 bundles/minuteMax. bundle size: 450 x 500 mmMax. bundle height: 400 mmMax. bundle weight: 25 kgPP strap width: 5, 6, 8 and 9 mmHeat-weld sealing system (24V)PLC control with touchscreen interfaceVariable speed conveyor systemAutomatic strap feeding and ejection systemPower supply: 400V / 3 Phase / 50-60HzPower consumption: 2 kVAWeight: approx. 430 kg

Built in                                          2019Technical Data·         Strapping capacity: up to 15 single straps/minute·         Parallel strapping capacity: up to 5 bundles/minute·         Frame size (W x H): 600 x 500 mm·         Maximum bundle weight: 25 kg·         Strapping material: Polypropylene (PP)·         Strap width: 5 - 12 mm·         Strap thickness: 0.35 - 0.70 mm·         Seal type: Thermal weld seal·         Coil core diameter: 200 / 228 mm·         Coil outside diameter: approx. 450 mm·         Electrical supply: 230 V, 1 Phase, 50 Hz·         Power consumption: 1.1 kW·         Pneumatic pressure: 4 bar·         Air consumption: 90 l/min (approx. 3 l/strap)·         Strap tension: up to 200 N·         Conveyor speed: 26 - 59 m/min·         Machine weight: 306 - 420 kg (depending on configuration)Standard Features·         Fully automatic operation·         PLC control with touchscreen interface·         Automatic strap feeding and detection·         Variable conveyor speed·         Adjustable strap tension ·         Maintenance-free direct drives

Built in                                    2004Configuration:                                                 Left-hand deliveryEquipped with:                                                 Left-hand delivery                                                 Mosca strapping unit Applications:                          Offset and gravure signatures Mechanical Infeed Speed:    Maximum 1.0 m/s Cycle Time:                            Minimum 32 s/log Signature Sizes:                                                 Minimum: 200 × 110 mm (7 7/8" × 4 3/8")                                                 Maximum: 480 × 320 mm (18 7/8" × 12 5/8") Page Count:                                                 Depending on paper quality and basis weight                                                 Minimum: 8 pages                                                Maximum: 144 pagesCompressed Log Length:                                                 Standard machine: 800 to 1,200 mm (31 1/2" to 47 1/4")                                                 With special insert (optional): 500 to 860 mm (19 3/4" to 33 7/8") Strapping System:                 Mosca RO-TRC-3 Strapping Material:                                                 12 mm (15/32") wide PP or PET strap Endboard Hopper Capacity:                                                 Maximum 100 endboards with 10 mm (3/8") thickness Endboard Thickness:                                                 Minimum: 5 mm (3/16")                                                 Maximum: 13 mm (1/2") Endboard Insertion:               Automatic Shingle Spacing:                                                 Minimum 30 mm (1 1/8") Shingle Side Variation:                                                 Maximum ±15 mm (5/8") Power Consumption:                                                Approx. 4.5 kW (with manual crane)                                                 Approx. 4.0 kW (without manual crane) Air Consumption:                                                 5 Nm³/h at 6 bar (3 cfm at 90 psi) Machine Weight:                                                 4,100 kg (9,000 lb)

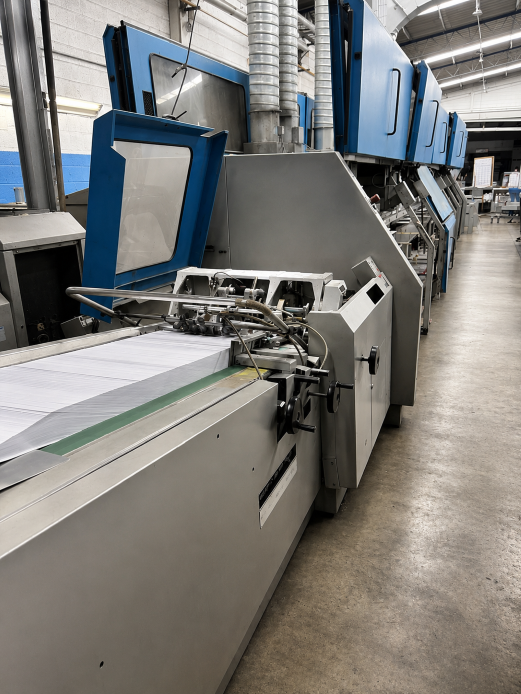

Built in                                          2001Size                                max       510 x 305 x 60 mm                                       min        140 x 100 x  3 mmBook block thickness    max        60 mm                                       min        3 mmCover size                      max        642 mm                                       min         203 mmSpeed                            max        15.000 c/hConsisting of: Gathering machine Müller Martini 3681 Description:                       - Chain tensioning station                                           - 22 gathering stations                                           - 20 gathering feeder 3681                                           - ASIR Automatic Signature Image                                           - ASAC automatic self adjusting calliper                                           - 1 Reject gate 3717 for incomplete products                                           - 2x 3643 Intermediate element with vibrating                                          - 1x 3642 Book block feeder base with feeder                                          - 1x 3643 Intermediate element with vibrating                                          - Transfer into the binderPerfect binderMüller Martini Corona 3010 C15 S-31Year:                                2000 Description:                                           - Semi automatic setting                                           - Commander - Main milling station                                           - 1st spine preparation station                                           - 2nd spine preparation station                                           - Brushing station                                           - Base for 1st spine glue system                                           - 1st hotmelt spine glue unit, interchangeable                                           - Premelter for spine glue unit: ICS C80                                           - Base for side glue system                                           - Hotmelt side glue unit, interchangeable                                           - Premelter for side glue unit                                           - Base for 2nd spine glue system                                           - PUR spine glue unit, interchangeable                                           - Stream cover feeder                                           - Scoring station                                           - 1st nipping and pressing station                                           - 2nd nipping and pressing station                                           - Lay down device Transport system                                           - Trasportbelts aprox 60 meters                                           - Escape deliveryBook block splitter Müller Martini 3501 Year:                                 2000                                           - Bypass belts                                           - turn over beltThree knife trimmer  Müller Martini 3672 Zenith Year:                                 2001 Description:                                           - Semi automatic setting                                           - Left hand infeed                                           - Integratedcounter stacker                                           - Knife pre-setting device                                           - Sets of knives: 2                                           - Exchangeable cutting tables (standard set): 4 – 17Book stacker Müller Martini 3631 CB 16 Description:                                           - Compensating stacker                                           - Delivery to the left and right Condition:                          Available immediately                                           The machine is fully visible during operation

Log StackerYear                         2008Description-straight infeed-infeed belt-reject unit-pressing station-turnoverbelt-delivery to right

Log StackerYear                         2008Description-straight infeed-infeed belt-reject unit-pressing station-turnoverbelt -delivery to right
