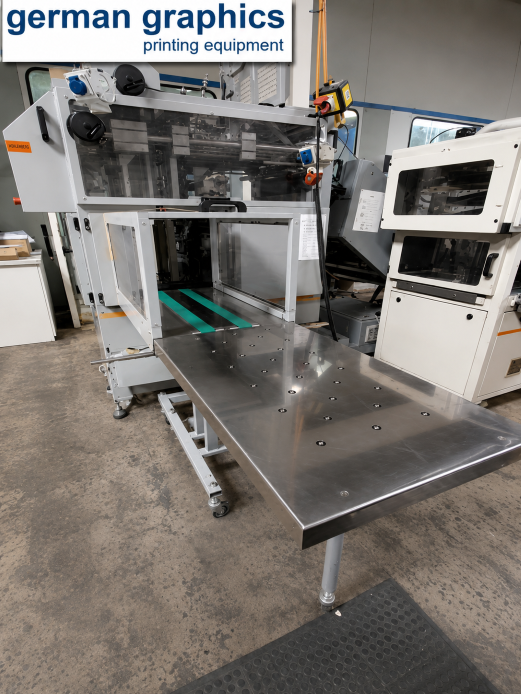

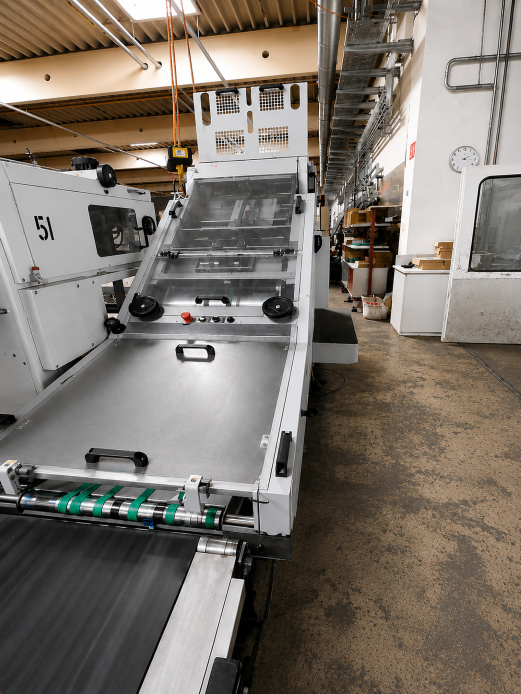

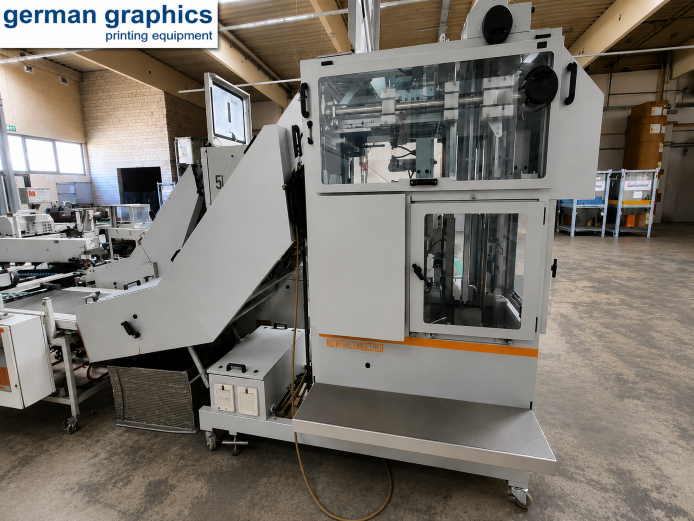

Machine number                           1070Built in                                           2009Infeed height                                 850 - 900 mmDelivery height                              850 - 900 mmbundle height                  max        300 mmProduct width                                148 - 315 mmProduct length                               210 - 430 mmProduct diagonal             max.       510 mm Cycle per layer                              0,9 s

“A“ Dimension 102 mm, 320 mm“B“ Dimension 145 mm, 500 mm“D“ Dimension limited by “A“ & “B“ limited by “A“ & “B“Thickness 4 pages 57 g/m, 96 pages 57 g/mSpeed product permitting 90 000 products per hourStack height RS 34S-17 upper bin total stack 254 mm 432 mmProduct orientation Spine leading (preferred), spine to the side (product permitting)Weight 945 kg (2100 lb)Optionsleft / right delivery, servo turntable, high-infeed

Built in 2014  - Performance/Speed: 55.000 cph (product permitting) - min format product (head/foot x spine): 102 mm x 152 mm (4.00" x 6.00") - max format product (head/foot x spine): 321 mm x 500 mm (12.63" x 19.68") - max pagination: 64p tab & magazine, 32p digest & delta - Product orientation: Spine leading - Low Infeed  - Infeed height (min/max in mm): 500-1000 mm  - Waste gate  - Stream Aligner / Jogger - Single squeeze roller  - Laser Counter, model: Scatec-2 - Upper bin height in mm: 127 mm - Upper Bin with Flipper Fingers  - Turntable with compression plates - max Stack height in mm: 330 mm - Pneumatic turntable - Pneumatic pusher - Delivery Direction to the right - Delivery height in mm: 876 mm (34.50“) - Delivery Table included  - Over all length equipment: 2514-2759 mm - Over all width equipment: ~700 mm - Over all height equipment: ~1800-1950 mm - Input Power: 3 kVA - Voltage: 400 V, 3 Ph, 50/60 Hz - Air requirement: 110 l/min @ 5.5 bar (6 cfm @ 80 psi) - Weight: 900 kg (2000 lb) - Equipment at warehouse Helmstedt, airports: Hannover (~1 hr), Berlin (~2 hrs) - Condition: cleaned & in working conditions

Built in: 2003 Size: max 320 x 500 mm min 102 x 145 mm Pile height pre-loading cage: 210 mm Pile height total stack: 330 mm Infeed height: 546-1.270 mm Stream distance: 19-102 mm Delivery height: 876 mm Speed: max 120.000 E. Ex./h Equipment:  • infeed with reject unit • double pressing unit • infrared counter • digital display • delivery to the right or left programmable • delivery belt

Built in 2004  Speed: 90.000 cph (product permitting) - min format product (head/foot x spine): 102 mm x 145 mm (4.00" x 5.75") - max format product (head/foot x spine): 320 mm x 500 mm (12.63" x 19.68") - max pagination: 48p - Product orientation: Spine leading - Low Infeed  - Infeed height (min/max in mm): 600-1200 mm - Waste gate  - Stream Aligner / Jogger - Single squeeze roller  - Laser Counter, model: Baumer Scatec-1 - Upper bin height in mm: 210 mm - Upper Bin with 3 forks - Turntable with compression plates - max Stack height in mm: 330 mm - Servo turntable - Pneumatic pusher - Delivery Direction to the right - Delivery height in mm: 876 mm (34.50“) - Air Delivery Table included  - Over all length equipment: 2650-2950 mm - Over all width equipment: ~700 mm - Over all height equipment: ~1800-1950 mm - Input Power: 3 kVA, 50/60 Hz, 3 ~ - Air requirement: 170 l/min @ 5.5 bar (6 cfm @ 80 psi) - Weight: 945 kg (2100 lb) - Equipment at Helmstedt, airports: Hannover (~1 hr), Berlin (~2 hrs) - Mechanical / electrical machine test possible - Condition: cleaned & in working conditions

Rebuilt: 2008 Size: max 320 x 470 mm; min 133 x 152 mm Product thickness: max 96 Seiten 57 g/m² mm Pile height pre-loading cage: 127 mm Pile height total stack: 330 mm Infeed height: 470 - 1.146 mm Delivery height: 876 mm Speed: max 100.000 Ex./h Equipment • infeed with reject unit • double pressing unit • infrared counter • delivery to the left • delivery belt Condition: cleaned and checked

Built in 2003 Size:  max 320 x 320 mm  min 133 x 152 mm Pile height:  max. 330 mm Speed:  max 100.000 Ex./h

Built in 1997 Size max 450 x 340 mm  min 148 x 105 mm Speed max 80.000 c/h

Built in 2005 Fall height 400 mm Size max 450 x 340 mm min 240 x 170 mm Mechanical speed 80.000 c/h Equipment  • outfeed to the right • belt delivery

Built in 2005 Fall height 400 mm Size max 450 x 340 mm min 240 x 170 mm Mechanical speed 80.000 c/h Equipment  • outfeed to the right • belt delivery

Built in: 2011 Infeed height: 600 - 900 mm Delivery height: ca. 870 mm Pile height: 160 - 300 mm Product width: 148 - 320 mm Product length: 190 - 480 mm Product diagonal: max. 580 mm Length: ca. 3.492 mm Width (without delivery): ca. 1.377 mm Height: ca. 2.228 mm Air pressure: 6 bar Air consumption: 1,0 Nm³/min. Tension: 400 V Power requirement: 1,5 kW

Built in: 2006                        .

Built in: 1999 Infeed hight: 600 - 900 mm

Built in: 1993 Size: max 500 x 330 mm min 140 x 105 mm Pile height: max 300 mm section height: max 170 mm Infeed height: max 1100 mm Delivery height: max 890 mm Speed: max 80.000 c/h

Size max 320 x 470 mm min 152 x 152 mm Product thickness max 96 pages 57/g/m² mm Pile height pre-loading cage 330 mm Pile height total stack 330 mm Infeed height 584-1143 mm Delivery height 876 mm Speed max 60.000 Ex./h

Size max 320 x 470 mm min 152 x 152 mm Product thickness max 96 pages 57/g/m² mm Pile height pre-loading cage 330 mm Pile height total stack 330 mm Infeed height 584-1143 mm Delivery height 876 mm Speed max 60.000 Ex./h

Size: max 470 x 320 mm Speed: max 25.000 c/h

Built in 1999

Built in: 1988 Size: 450 x 340 mm Speed: 80.000 c/h Equipment:  • infeed belt • counter- and pile delivery

  Built in: 1991 Size: 450 x 340 mm Speed: 80.000 c/h Equipment: • belt delivery

Built in: 1988 Size: 450 x 340 mm Speed: 80.000 c/h

Year of Construction: 2006- Speed: ~90.000 cph (product permitting)- min format product (head/foot x spine): 105 mm x 140 mm- max format product (head/foot x spine): 330 mm x 500 mm- max pagination: 96p tab & magazine, 32p digest & delta- Product orientation: Spine leading- Low Infeed- Infeed height (min/max in mm): ~560-970 mm- Waste gate- Stream Aligner / Jogger- Single squeeze roller- Laser Counter, model: Denex Edge Detector 2- Upper bin height in mm: 200 mm- Upper Bin with Servo Lift System - two servo lifts- Turntable with compression plates- max Stack height in mm: 300 mm- Pneumatic pusher- Servo pusher- Delivery Direction to the left- Delivery Direction to the right- Delivery height in mm: ~ 890 mm- Air Delivery Table included- Over all length equipment: 3272 mm- Over all width equipment: 1450 mm- Over all height equipment: 2056 mm- Input Power: 4,25 kW- Voltage: 400 VAC, 3Ph, N, PE- Air requirement: max 1020 Nl/min ( 1bar) / 6 bar pressure- Weight: ~1100 kg- Equipment at Helmstedt, airports: Hannover (~1 hr), Berlin (~2 hrs)- Condition: cleaned & in working conditions
