Built in                                          2006Size                                max       320 x 510 x 70 mm Speed                            max        15.000 c/hGatherer                                      18 stacions ZU 841                                                      - Optical sheet control: SignalLynx                                                      - ATC thikness control                                                      1 Reject AS 841Perfectbinder                              - Number of clamps: 30                                                     - Main milling station                                                     - 1st spine preparation station                                                     - 2nd spine preparation station                                                     - 3rd spine preparation station                                                     - Brushing station                                                     - Base for 1st spine glue system                                                     - Hotmelt spine glue unit, interchangeable                                                     - Premelter for spine glue unit: LH 375.C                                                     - Base for 2nd spine glue system                                                     - Hotmelt spine glue unit, interchangeable                                                     - Premelter for spine glue unit: LH 375.C                                                     - Base for side glue system                                                     - Hotmelt side glue unit, interchangeable                                                     - Premelter for side glue unit: LH 375.A                                                     - Stream cover feeder: SAL 411.C                                                     - Scoring station  max: 6                                                     - 1st nipping and pressing station                                                     - 2nd nipping and pressing station                                                     - Lay down device (to the left)Transport system         Kolbus TSE                                                     - Transport system, length (approx) 50 meters                                                     - Conveyor tower Ambaflex                                                     - Reject unitThree knife trimmer                      Kolbus HD 152P                                                           - counter: 14,367 mio—only!!!                                                     - Co-Pilot with touchscreen                                                     - Right hand infeed                                                     - Counter stacker                                                     - Knife pre-setting device                                                     - Sets of knives: 2                                                     - Exchangeable cutting tables (standard set): 7-18                                                     - Silicone spray device Stacker                                         - Rima Stacker 3310    ( Kolbus XRS 130)                                                           - Rima Statik device 110

Machine number                         135Built in                                         1993Size                                             max 510 x 290 x 65 mm                                                    min 125 x 100 x  3 mmBook block thickness                   max 65 mm                                                    min 3 mmSpeed                                          max 10.000 c/hEquipment                                   • 24 stations gather                                                    •  book bloc feeder                                                    •  endsheet tipping unit                                                     •  32 Clamps                                                     •  milling and roughening station                                                    •  hotmelt spine glue station                                                    •  hotmelt side glue station                                                    •  cold spine glue station                                                    •  Kolbus HL Premelter                                                    •  Nordson Premelter                                                     •  Nordson Premelter                                                    •  Slauterback Premelter                                                    •  stream Cover Feeder                                                    •  2 pressing stations                                                    •  laydown delivery                                                    •  Cooling Tower                                                    •  Kolbus Transport Conveyor w/ All Associated Conveyors                                                    •  Controls     •  Large Assortment of Spare Parts

Built in                                          2012Size                                max        360 x 310 mm                                       min         140 x 100 mmBook block thickness      max        60 mm                                        min         3 mmCover size                       max        642 mm                                        min         203 mmSpeed                             max        18.000 c/hEquipment                                    gathering machine       . chain tensioner       . 18 stations       . 18 feeders 3681       . reject gate 3714        controls       . miss and double sheet control

Machine number          202Built in                           2008Size                                max       320 x 430 x 70 mm                                       min        105 x 140 x  2 mmBook block thickness     max        70 mm                                      at least 2 mmCover size                     max       435 x 650 mm                                       min         140 x 208 mmSpeed                             max        2.000 c/hLength                                           3.700 mmWidth                                             1.400 mmHeight                                            1.300 mm Equipment                              milling station •   dust extraction •   PUR gluing unit •   premelter for PUR glue •   gauzing/- back stripping station •   pile cover feeder •   cover pressing station •   belt delivery •   packer stack delivery standards •   1 set of operator manuals •   1 set of standard tools •   information: •   condition: cleaned in very good working condition •   location: Germany Helmstedt

Size: max 270 x 425 x 70 mm; min 100 x 140 x 3 mmCover size: max 420 x 610 mm; min 140 x 203 mmSpeed: max 1.600 - 5.000 c/hPower requirements: 10,5 kW  (220/380V, 50Hz) Equipment                                    gathering machine•   12 stations•   3 feeders 201

Built in: 1999Size: max 480 x 320 x 80 mm; min 140 x 100 x 2 mmCover size: max 642 mm; min 203 mmBook block thickness: max 80 mm; min 2 mmSpeed: max 7.500 c/h; min 1.200 mmEquipment gathering machine•   hand feeding station•   21 feeders 3691/18•   reject gate 3614•   pile delivery Universo 244•   seperation element•   jogging elementperfect binder•   30 clamps•   PVA (cold glue) spine gluing unit•   hot melt side gluing unit•   IR intermediate dryer•   gauzing station•   stream cover feeder•   2 pressing stations•   HF dryeroptionales Equipment: --not included--•   PUR spine gluing unit•   premelter for PUR gluing unit

Built in: 2011Size: max 320 x 485 x 60 mm; min 100 x 140 x 2 mmBlock hang-up: 8-15 mmMilling depth: max 4 mmClamp opening: max 80 mmPaper weight (grammage): min 60-170 g/qmCover width: 202-710 mmCover height Drum feeder: 140-490 mmCover height Stream feeder: 140-470 mmMechanical speed: 8.000 c/hEquipment gathering machine•   hand feeding station•   16 stations•   criss-cross deliveryperfect binder•   19 clamps•   milling station•   scoring station•   hot melt spine gluing unit•   hot melt side gluing unit•   PUR spine gluing unit•   2 premelters•   premelter for PUR gluing unit•   cover feederthree knife trimmer•   conveyor belt to trimmer with reject unit•   three knife trimmer Euro Trim Pro

Built in: 2011Size: max 320 x 485 x 60 mm; min 100 x 140 x 2 mmBlock hang-up: 8-15 mmMilling depth: max 4 mmClamp opening: max 80 mmPaper weight (grammage): min 60-170 g/qmCover width: 202-710 mmCover height Drum feeder: 140-490 mmCover height Stream feeder: 140-470 mmMechanical speed: 8.000 c/hEquipment gathering machine•   hand feeding station•   16 stations•   criss-cross deliveryperfect binder•   19 clamps•   milling station•   scoring station•   hot melt spine gluing unit•   hot melt side gluing unit•   PUR spine gluing unit•   2 premelters•   premelter for PUR gluing unit•   cover feederthree knife trimmer•   conveyor belt to trimmer with reject unit•   three knife trimmer Euro Trim Pro

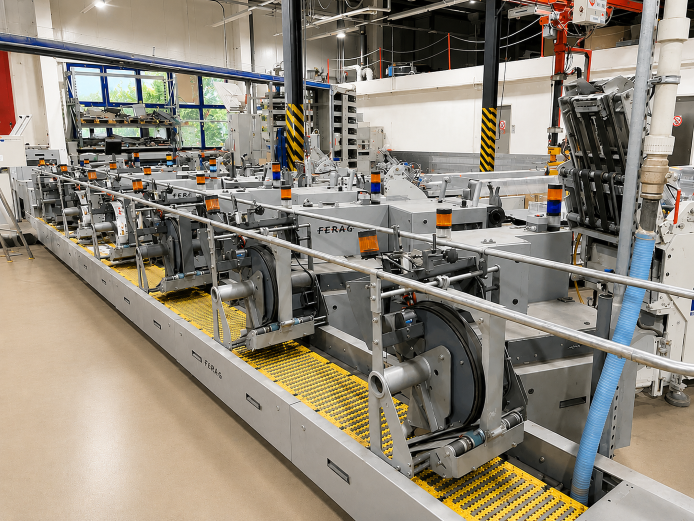

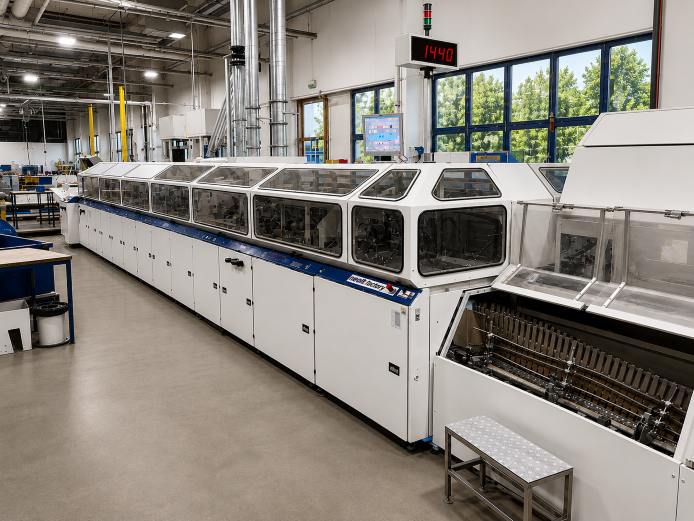

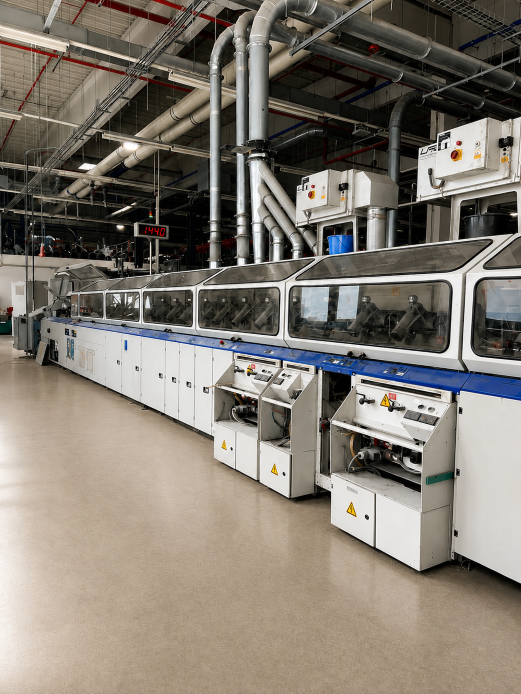

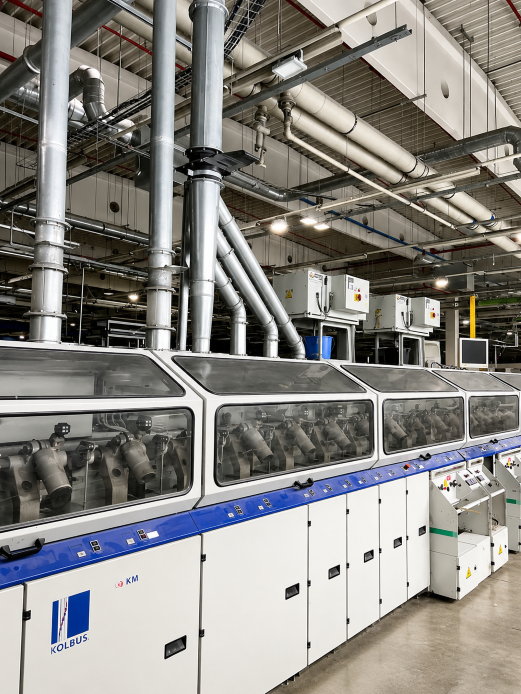

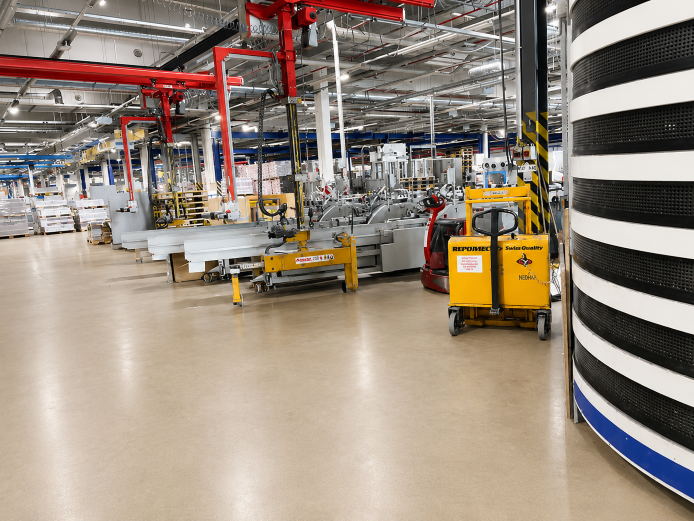

Equipment  gathering machine • 6 stations • gatherer Ferag • reject unit • 2 jogging elements perfect binder • perfect binder Publica KM 410 • copilot with touch screen • 40 clamps • infeed incl. coupling with ZU • 2 milling stations • strip milling head • 4 spine preparation stations • hotmelt spine gluing unit • 2nd hotmelt spine gluing unit • hotmelt side gluing unit • 3 premelters • stream cover feeder SAL 411 • cover scoring 4 lines • 2 pressing stations • straight delivery • lay down device • quality control with individual product rejection conveyor system • length ca. 50 m • drying tower XAF • intermediate delivery • belt control cabinet TS.E three knife trimmer • three knife trimmer HD 152.P • right hand infeed with pre stacker • copilot with touch screen • cutting tables • knife adjustment device • 2 sets of knives compensating stacker • compensating stacker CB 16 • counting device • delivery right

Built in: 2001 Size: max 360 x 310 mm, min 140 x 100 mm Book block thickness: max 60 mm, min 3 mm Cover size: max 642 mm, min 203 mm Speed: max 18.000 c/h Equipment  gathering machine • chain tensioner • 18 feeders 3681 • reject gate 3714 controls • miss and double sheet control • ASAC automatic self-adjusting calipers intermediate elements • 2 jogging elements 3642 • connected with perfect binder • commander • 41 clamps • infeed chanel with jogger • 2nd milling station with pressing roller • double combined spine preparation station • 2 hot melt spine gluing units • hot melt side gluing unit • 3 premelters • SF stream cover feeder • SF cover nipping and pressing station • 2nd SF cover pressing station • smooth lay down device conveyor system • connected with • three knife trimmer Zenith S optionales Equipment:--not included-- • compensating stacker • shrink wrapping • palletizer

Baujahr 2005The Buhrs RF5 Mobile Rotary Feedercan be connected to or integrated into any Buhrs 4000 and many Buhrs Ultimail film packaging systems.The RF5 feeders can easily be placed in multiple positions such as left, in-line and right in the pick-up section of any Buhrs 4000 system and many Buhrs Ultimail film packaging systems.Key features of the Buhrs RF5 Mobile Rotary Feeder:Setting the timing on the flyMobile and flexibleMove from one position to another in just a second

Baujahr 2005The Buhrs RF5 Mobile Rotary Feedercan be connected to or integrated into any Buhrs 4000 and many Buhrs Ultimail film packaging systems.The RF5 feeders can easily be placed in multiple positions such as left, in-line and right in the pick-up section of any Buhrs 4000 system and many Buhrs Ultimail film packaging systems.Key features of the Buhrs RF5 Mobile Rotary Feeder:Setting the timing on the flyMobile and flexibleMove from one position to another in just a second

Built in: 1995 Size: max 510 x 310 x 60 mm; min 140 x 100 x 3 mm Book block thickness: max 60 mm; min 3 mm Cover size: max 642 mm; min 203 mm Speed: max 12.000 c/h Equipment  gathering machine • 15 stations • 15 feeders 201 S • jogging element 3642 perfect binder • 23 clamps • clamp pitch 24" • jogging station • milling and roughening station • hot melt spine gluing unit • hot melt side gluing unit • 2 premelters • stream cover feeder • 2nd SF cover pressing station • lay down device

Built in: 2005 Size: max 510 x 310 x 60 mm, min 140 x 100 x 3 mm Book block thickness: max 60 mm, min 3 mm Cover size: max 642 mm, min 203 mm Speed: max 12.000 c/h Equipment: gathering machine • 18 stations • 18 feeder 3695/24 • reject gate 3614 • 2 jogging elements perfect binder • 22 clamps • clamp pitch 24" • jogging station • spine preparation • milling and roughening station • grinding station • hotmelt spine gluing unit • hotmelt side gluing unit • 2 premelters • stream cover feeder • SF cover pressing station • 2nd SF cover pressing station • lay down device three knife trimmer • conveyor belt to trimmer • Trimmer: MM Zenith-S

Baujahr 2001rotary feeders with adjustable interface, 970 mm high

Nordson EPC 30pattern control system4 OUT / 2 INIP5424 VDC4-20 MAECLIPSE+Nordson ProBlue 4holding capacity on the Nordson ProBlue 4 is 3.9 kg and a melt rate of 4.3 kg/hr1 glue head

Baujahr 2001

Baujahr 2006Rotatable folding unit, four-part foldsCentral roller adjustment with micro-adjustmentHeight adjustable, mobile, lockableElectrics switchable from automatic to separate operation for third-party machinesInlet width: max. 30 cm min. 11 cmFormat length: max. 65 cm min. 16 cmInlet height: (sword from top) max. 860 mm and min. 520 mmDischarge height: (sword from top) max. 770 mm and min. 430 mmInlet height: (sword from below) max. 865 mm and min. 525 mmDischarge height: (sword from below) max. 970 mm and min. 630 mmSpeed: 40 – 130 m/minute, infinitely variable via electronic speed controlNumber of cycles: up to approx. 16,000 cycles/hour.Power requirement: 1.0 kWSpace requirement: 0.80 x 1.30 m

Built in: 2001-2003 Size: max 290 x 420 x 65 mm; min 100 x 105 x 3 mm Speed: max 15.000 c/h Equipment  gathering machine • chain tensioner • 12 stations • gatherer ZU 840 • 8 streamfeeder STA 840 • reject unit AS 840 controls • opticontrol signature image reader intermediate elements • reject unit • jogging element perfect binder • Copilot • Monitor control • 23 clamps • jogging station • resting table • fold pressing station • milling and roughening station • equalizing-leveling station • hotmelt spine gluing unit • hotmelt side gluing unit • 2 premelters • stream cover feeder • cover pressing station • smooth lay down device conveyor system • bypass for splitting saw splitting saw • turnover belt • connected with three knife trimmer • destacker • information three knife trimmer: HD 151 P compensating stacker • information compensating stacker: Müller Martini CB 16 standard accessories • pv pressure-vacuum pump • 1 set of electrical diagrams • 1 set of spare part catalogues • 1 set of tools further information • machine can be tested in production • condition: working condition

Size: max 510 x 310 x 60 mm; min 140 x 100 x 3 mm Book block thickness: max 60 mm; min 3 mm Cover size: max 642 mm; min 203 mm Speed: max 12.000 c/h Equipment  gathering machine • 18 stations • feeders 3691 • reject gate 3614 controls • miss and double sheet control • ASAC automatic self-adjusting calipers intermediate elements • spiral race away • 3 jogging elements • connected with perfect binder • 21 clamps• milling and roughening station • 2 hot melt spine gluing units • hot melt side gluing unit • 2 premelters • SF stream cover feeder • SF cover nipping and pressing station • smooth lay down device conveyor system • ca. 30 m • connected with three knife trimmer • three knife trimmer MM Zenith 3672 compensating stacker • compensating stacker Müller Martini standards • standard accessories • 1 set of operator manuals • 1 set of electrical diagrams • 1 set of spare part catalogues • 1 set of tools

Built in: 2002

Build in 2010 Flow Turn Cconveyor 45° belt conveyor, running direction left, with drive,  infeed / delivery height : ca. 800 mm inner radius: 600 mm belt width: 600 mm

Size:  max 510 x 305 x 60 mm  min 140 x 100 x 3 mm Cover size:  max 640 mm  min 203 mm Speed: max 10.000 c/h Equipment  gathering machine: 15 feeders 256 perfect binder: 20 clamps milling and roughening station hot melt spine gluing unit hot melt side gluing unit premelter S stream cover feeder cover nipping and pressing station lay down device optionales Equipment:--not included-- - PUR Leimbecken

Built in 1997 Size max: 360 x 605 x 60 mm Speed max 18.000 c/h Equipment: gathering machine: 27 feeders 3690/18 reject gate 3614 perfect binder: 60 clamps clamp pitch 18" milling and roughening station 2 hot melt spine gluing units hot melt side gluing unit gauzing station SF stream cover feeder 2nd SF cover pressing station lay down device
