Rima Logstacker 610Rima Palletizer 655 Year                                             2015 / 2016Product Formats                                                    Head: 100 - 320 mm                                                    Spine: 180 - 500 mmProduct Thickness                                                    4 Pages @ 57 g/m² to 128 Pages @ 57 g/m²Compressed Log Length                                                    Standard: 800 - 1,200 mm                                                    High-Speed (HS): 1,000 - 1,200 mmHeights                                                    Infeed Height: 600 - 800 mm                                                    Delivery Height: 900 mmProduct Orientation                                                    Spine LeadingSpeed                                                    Standard Cycle Time: Approx. 27 sec                                                    High-Speed Cycle Time: Approx. 25 sec                                                     Cycle time depends on product type and log length.Input power                                                    400 V, 3~, N, PE                                                    50/60 Hz                                                    40 A                                                    15 kW (Log Palletizer) + 3 kWAir Requirements                                                    110 l/min @ 6 bar (87 psi)EquipamentStraight  infeed delivery to left automatic board despencerautomatic strapping unit                                                Automatic Pallatizer 655

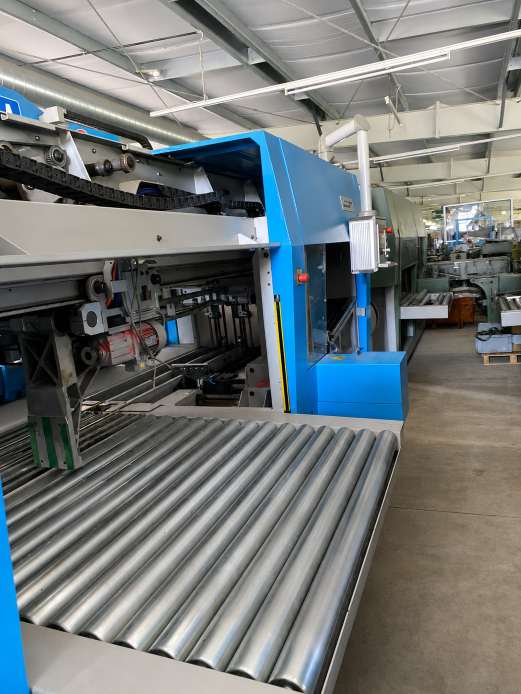

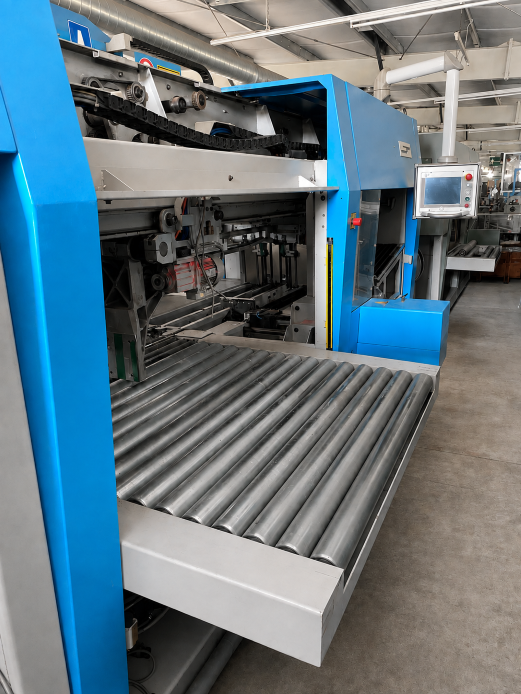

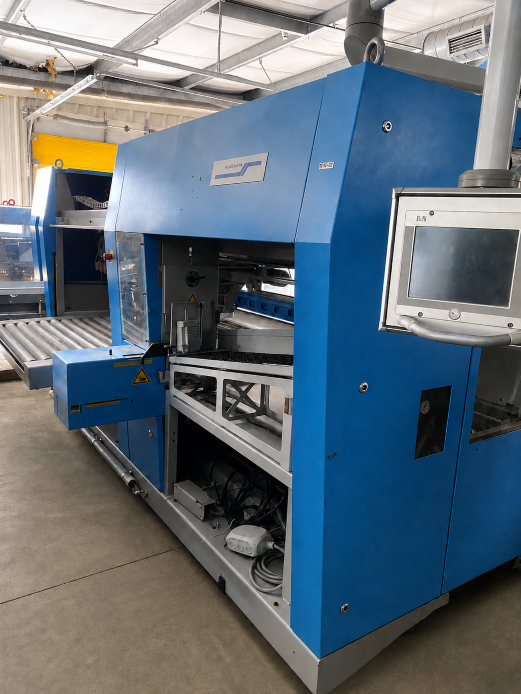

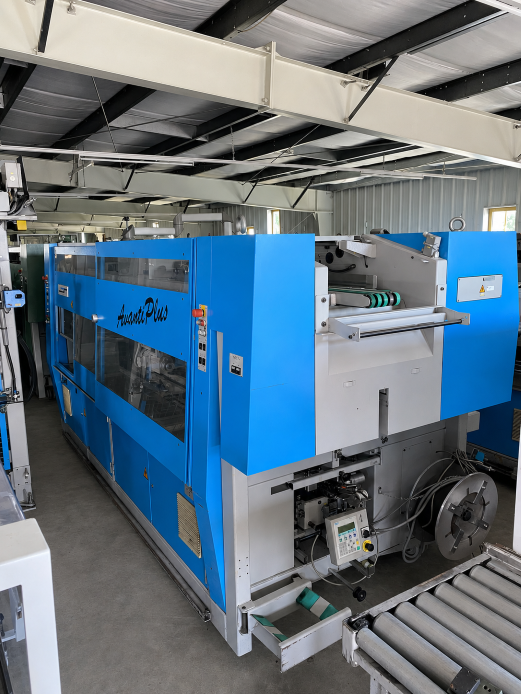

Technical Data·       Fully automatic perfect binding machine.·       Suitable for books, catalogs, magazines and softcover production.·       Modular design for integration with gathering, binding and trimming systems.·       High-production industrial binding system.·       EVA hotmelt adhesive application system.·       Automatic cover feeder.·       Automatic book block feeding.·       Milling and spine preparation station.·       Cover creasing and scoring unit.·       Delivery conveyor system.·       PLC-controlled operation with central control panel.Production Capabilities·       Production speed: up to 6,000 cycles/hour depending on configuration.·       Book block thickness range: approximately 2 to 60 mm.·       Maximum book format: approximately 320 x 450 mm.·       Minimum book format: approximately 100 x 105 mm.·       Suitable for short, medium and long production runs.Features·       Automatic thickness adjustment.·       Electronic production monitoring.·       Fast make-ready times.·       Precise spine preparation.·       Consistent adhesive application.·       Robust industrial construction.·       High reliability and low maintenance requirements. ·       Designed for continuous 24-hour production environments.

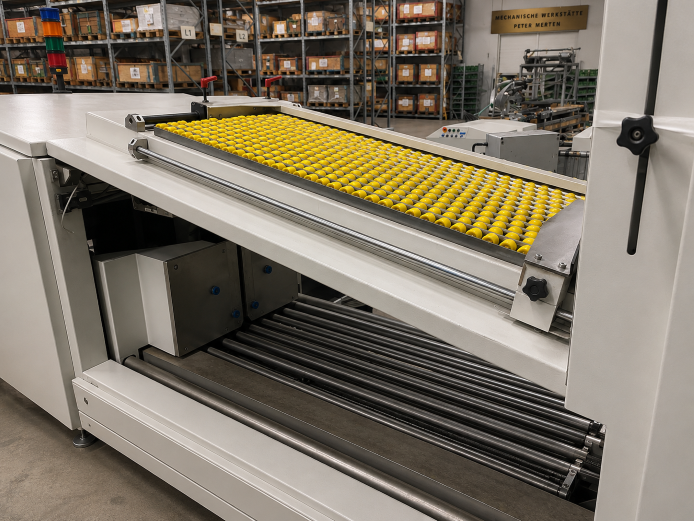

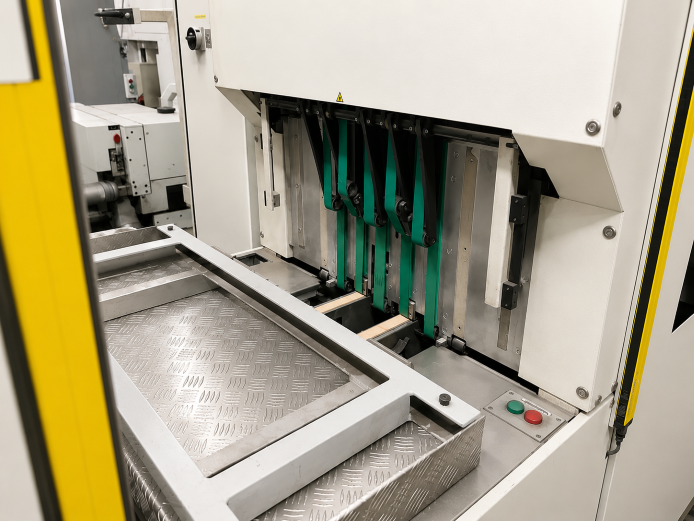

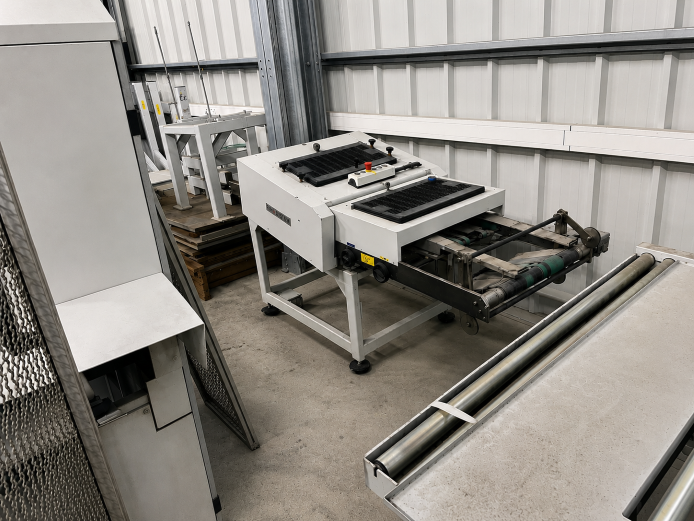

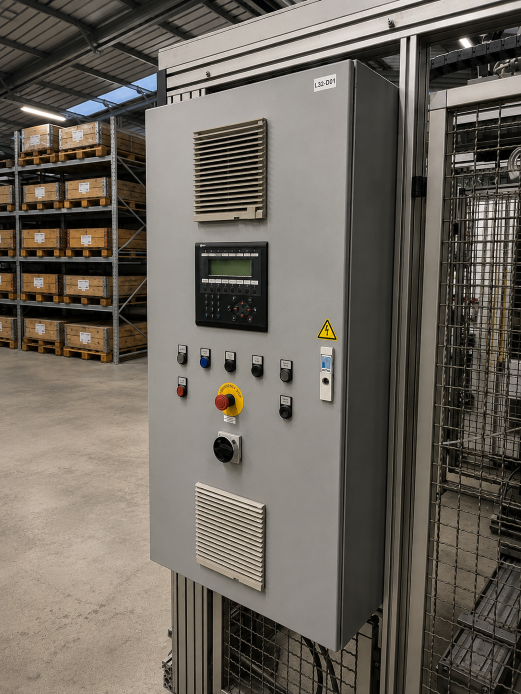

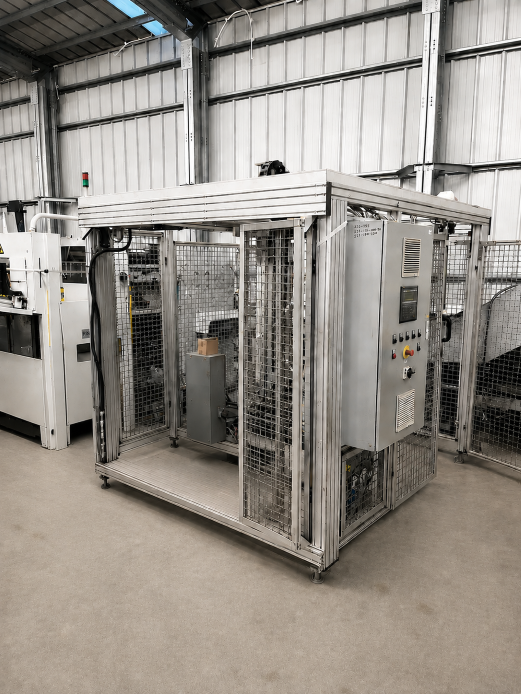

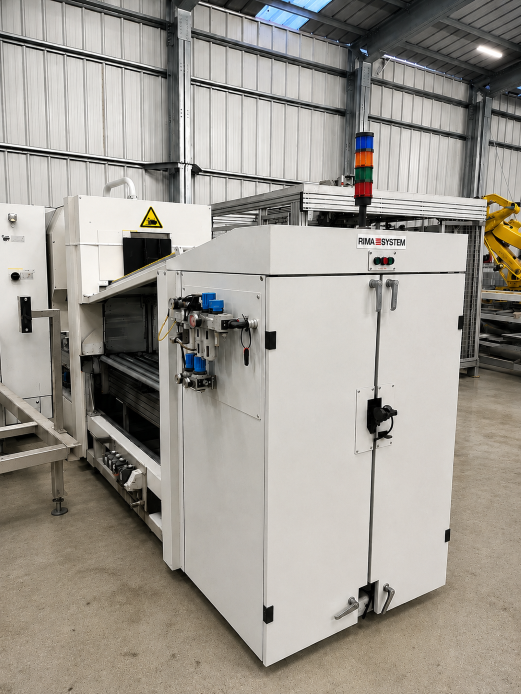

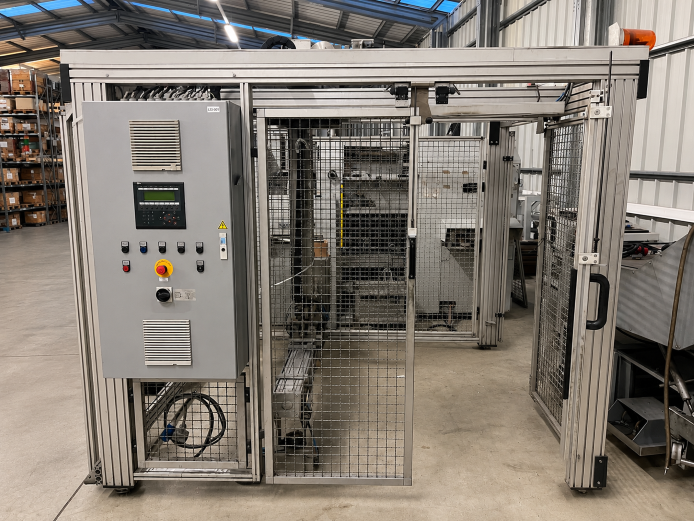

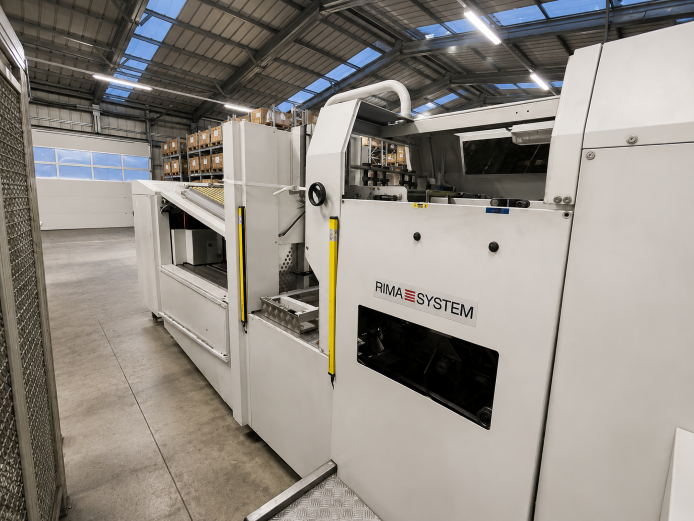

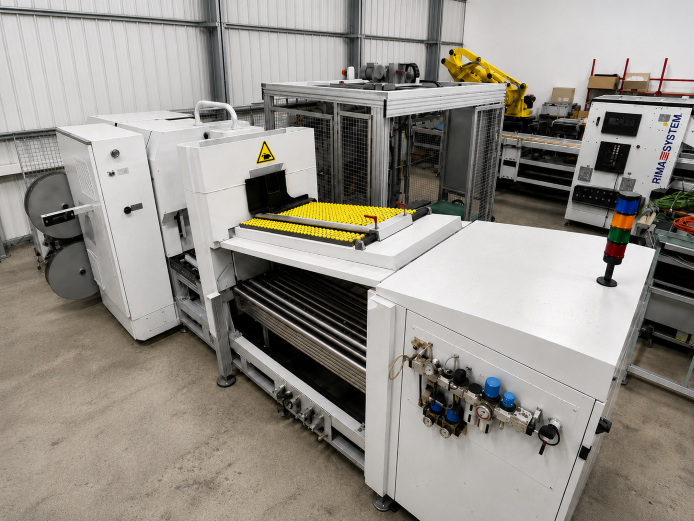

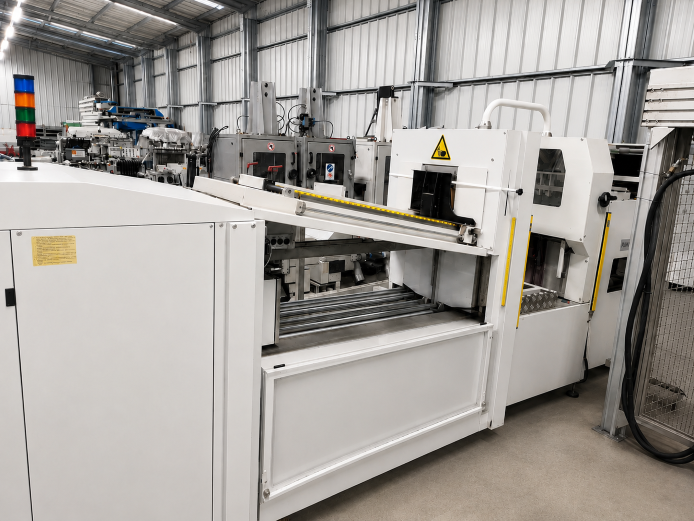

Built in                          2007Rima RS 600Description·         Straight infeed·         Infeed belt·         Reject unit·         Pressing station·         Turnover belt·         Delivery to rightTechnical DataProduct Format·         Dimension A: min. 100 mm / max. 340 mm·         Dimension B: min. 180 mm / max. 500 mm·         Dimension D: limited by dimensions A & BProduct Thickness·         Min.: 4 pages at 57 g/m²·         Max.: 132 pages at 57 g/m²Compressed Log Length·         Min.: 800 mm·         Max.: 1,200 mmInfeed Height·         Adjustable from 600 to 800 mmDelivery Table Height·         900 mm (left or right)Log Spacing at Infeed·         Min.: 40 mm·         Max.: 80 mm Product Orientation·         Spine leadingSpeed·         Up to 120,000 copies/hour·         Cycle time: 25 seconds (depending on product)Electrical Requirements·         400 V, 3~, N, PE, 50/60 Hz·         40 A·         Connected load: 28 kWAir Requirement·         110 l/min at 6 barWeight·         Approx. 3,500 kgOptions·         Left or right infeed·         Left or right delivery tableRima RS 650·         Automatic compensating stacker for printed products.·         Designed for magazines, newspapers, catalogs and bookbinding products.·         Continuous high-speed stacking operation.·         Servo-controlled stacking technology.·         Gentle product handling for stable stack formation.·         Low maintenance and high reliability.·         Suitable for operation behind bindery equipment, inserters and packaging systems.

Log StackerYear                         2008Description-straight infeed-infeed belt-reject unit-pressing station-turnoverbelt-delivery to right

Log StackerYear                         2008Description-straight infeed-infeed belt-reject unit-pressing station-turnoverbelt -delivery to right

Built in:                                 2001 Size:              max                480 x 320 mm                      min                 200 x 110 mm Mech. Speed:                      1,0 m/s  Air requirement (6 bar):      5 m³/h Weight:                                4.100 kg (approx.)Equipment                                            • delivery leftStrapping system                                             • StrapexCondition                                             • cleaned working condition

Built in                2004Configuration:                  Left-hand deliveryEquipped with:                  Left-hand delivery                  Mosca strapping unit Applications:  Offset and gravure signatures Mechanical Infeed Speed:  Maximum 1.0 m/s Cycle Time:          Minimum 32 s/log Signature Sizes:                  Minimum: 200 × 110 mm (7 7/8" × 4 3/8")                  Maximum: 480 × 320 mm (18 7/8" × 12 5/8") Page Count:                  Depending on paper quality and basis weight                  Minimum: 4 pages                 Maximum: 144 pagesCompressed Log Length:                  Standard machine: 800 to 1,200 mm (31 1/2" to 47 1/4")                  With special insert (optional): 500 to 860 mm (19 3/4" to 33 7/8") Strapping System:         MoscaStrapping Material:                  12 mm (15/32") wide PP or PET strap Endboard Hopper Capacity:                  Maximum 100 endboards with 10 mm (3/8") thickness Endboard Thickness:                  Minimum: 5 mm (3/16")                  Maximum: 13 mm (1/2") Endboard Insertion: Automatic Shingle Spacing:                  Minimum 30 mm (1 1/8") Shingle Side Variation:                  Maximum ±15 mm (5/8") Power Consumption:                 Approx. 4.5 kW (with manual crane)                  Approx. 4.0 kW (without manual crane) Air Consumption:                  5 Nm³/h at 6 bar (3 cfm at 90 psi) Machine Weight:                  4,100 kg (9,000 lb)

Built in                                    2004Configuration:                                                 Left-hand deliveryEquipped with:                                                 Left-hand delivery                                                 Mosca strapping unit Applications:                          Offset and gravure signatures Mechanical Infeed Speed:    Maximum 1.0 m/s Cycle Time:                            Minimum 32 s/log Signature Sizes:                                                 Minimum: 200 × 110 mm (7 7/8" × 4 3/8")                                                 Maximum: 480 × 320 mm (18 7/8" × 12 5/8") Page Count:                                                 Depending on paper quality and basis weight                                                 Minimum: 8 pages                                                Maximum: 144 pagesCompressed Log Length:                                                 Standard machine: 800 to 1,200 mm (31 1/2" to 47 1/4")                                                 With special insert (optional): 500 to 860 mm (19 3/4" to 33 7/8") Strapping System:                 Mosca RO-TRC-3 Strapping Material:                                                 12 mm (15/32") wide PP or PET strap Endboard Hopper Capacity:                                                 Maximum 100 endboards with 10 mm (3/8") thickness Endboard Thickness:                                                 Minimum: 5 mm (3/16")                                                 Maximum: 13 mm (1/2") Endboard Insertion:               Automatic Shingle Spacing:                                                 Minimum 30 mm (1 1/8") Shingle Side Variation:                                                 Maximum ±15 mm (5/8") Power Consumption:                                                Approx. 4.5 kW (with manual crane)                                                 Approx. 4.0 kW (without manual crane) Air Consumption:                                                 5 Nm³/h at 6 bar (3 cfm at 90 psi) Machine Weight:                                                 4,100 kg (9,000 lb)

Type: LS/1120Product size: Width min 200 mm, max 520 mm, lenght min 100 mm, max 320 mmProduct thickness: min 0,2 mm, max 4,5 mmStream thickness: max 25 mm (compressed)Shingle distance: 40 mm at normal max 80 mmEdge offset: +/- 3 mmFold orientation: Spine leading (inversed shingle stream)Page count: min 8 page, max 96 pagePaper wight: min 30 g/m2, max 140 g/m2Bundle lenght: min 600 mm, max 1200 mmEndboard: same as product size, Thickness min 9,5 mm, max 12,5 mmOperating speed: 24 sec. per bundleBelt speed: min 7,5 m/min, max 50 m/minStraping head: Mosca MK-43Strap material: 12 mm width poly propylene

Built in: 2002 bar length: 600 - 1.200 mm Sheet size: max 490 x 320 mm; min 220 x 150 mm Mechanical cycle time: min 24 s Effektive cycle time: min 30 s infeed height: adjustable 250 - 550 mm Log delivery height: 1.150 mm Paper weight (grammage): max 40 - 130 g/qm Electric supply: 400/50 V/Hz/A Air requirement (6 bar): 5 m³/h Weight: 4.100 kg (approx.)  Equipment delivery • delivery right • automatic wood inserter palletizer • pallet dispenser • transport rollers

Built in: 2002 bar length: 600 - 1.200 mm Sheet size: max 490 x 320 mm; min 220 x 150 mm Mechanical cycle time: min 24 s Effektive cycle time: min 30 s infeed height: adjustable 250 - 550 mm Log delivery height: 1.150 mm Paper weight (grammage): max 40 - 130 g/qm Electric supply: 400/50 V/Hz/A Air requirement (6 bar): 5 m³/h Weight: 4.100 kg (approx.) Equipment delivery • delivery left • automatic wood inserter palletizer • pallet dispenser • transport rollers

Built in:                          2001 Size:             max          480 x 320 mm;                      min           200 x 110 mm Mech. Speed:               1,0 m/s  Air requirement            (6 bar): 5 m³/h Weight:                         4.100 kg (approx.) Equipment                                       • delivery right  Strapping system                                      • Strapex

Built in: 1997 Size: max 480 x 320 mm; min 200 x 110 mm Mech. Speed: 1,0 m/s  Air requirement (6 bar): 5 m³/h Weight: 4.100 kg (approx.) Equipment  • delivery right

Built in: 1999 Size: max 480 x 320 mm; min 200 x 110 mm Mech. Speed: 1,0 m/s  Air requirement (6 bar): 5 m³/h Weight: 4.100 kg (approx.) Equipment  • delivery right Strapping system • Strapex
